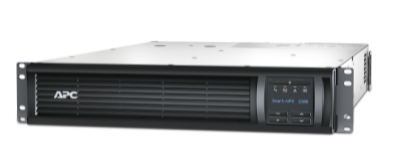

APC Smart-UPS Extended Line Interactive 2200VA Rack Mount with Network Management Card (SMT2200RM2UNC)
APC Smart-UPS Extended Line Interactive 2200VA Rack Mount with Network Management Card (SMT2200RM2UNC)
SKU:SMT2200RM2UNC
Couldn't load pickup availability
Highly efficient, pre-networked line-interactive power protection for servers and network switches.
When outfitting a server rack or network closet, efficiency and immediate visibility are your top priorities. The APC Smart-UPS 2200VA RM 2U with Network Card (SMT2200RM2UNC) delivers the legendary reliability of APC’s line-interactive topology, bundled with out-of-the-box remote management. Delivering a robust 1980 Watts of pure sine wave power in a compact 2U rack-mount frame, this unit is engineered for IT professionals who need intelligent power protection without the premium cost of double-conversion systems or the need for extended battery expansion. With the Network Management Card pre-installed, you can bypass the manual hardware setup and instantly connect your UPS to your secure network for remote monitoring, automated alerts, and graceful unattended server shutdowns.
Key Features & Benefits:
-
Pre-Installed Network Management Card: Accelerate your deployment. The factory-installed NMC allows for secure remote monitoring and control via Web browser, SNMP, or Schneider Electric’s EcoStruxure IT, giving your central IT team immediate visibility into edge network health.
-
Line-Interactive Efficiency: Features advanced Automatic Voltage Regulation (AVR) that corrects low and high voltage conditions without draining the battery. This maximizes battery life and delivers up to 98% operating efficiency, saving you significantly on utility and cooling costs.
-
Pure Sine Wave Output: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive networking electronics, preventing hardware degradation.
-
Switched Outlet Groups: Gain granular control over your rack. Reboot hung devices, shed non-critical loads during an outage to conserve runtime for primary servers, and sequence start-ups directly from your remote management dashboard.
-
High-Density 2U Form Factor: Maximize your cabinet space. This unit delivers nearly 2kW of power while occupying only 2U of rack space, complete with standard 4-post mounting rails included in the box.
Technical Specifications (Critical for SEO & Fitment):
-
Output Capacity: 1980 Watts / 2200 VA
-
Input Plug Type: NEMA 5-20P (Note: Requires a dedicated 20-Amp wall receptacle or PDU; will not fit a standard 15-Amp outlet)
-

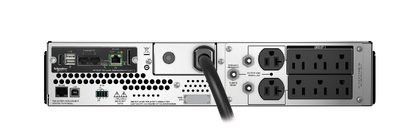

Output Receptacles: (6) NEMA 5-20R, (2) NEMA 5-15R
-
Nominal Voltage: 120V
-
Topology: Line-Interactive
-
Form Factor: 2U Rack-Mount (Rails Included)
-
Scalability: Standard internal battery runtime (Note: If you require daisy-chained extended runtime, see the SMX or SRT series).
