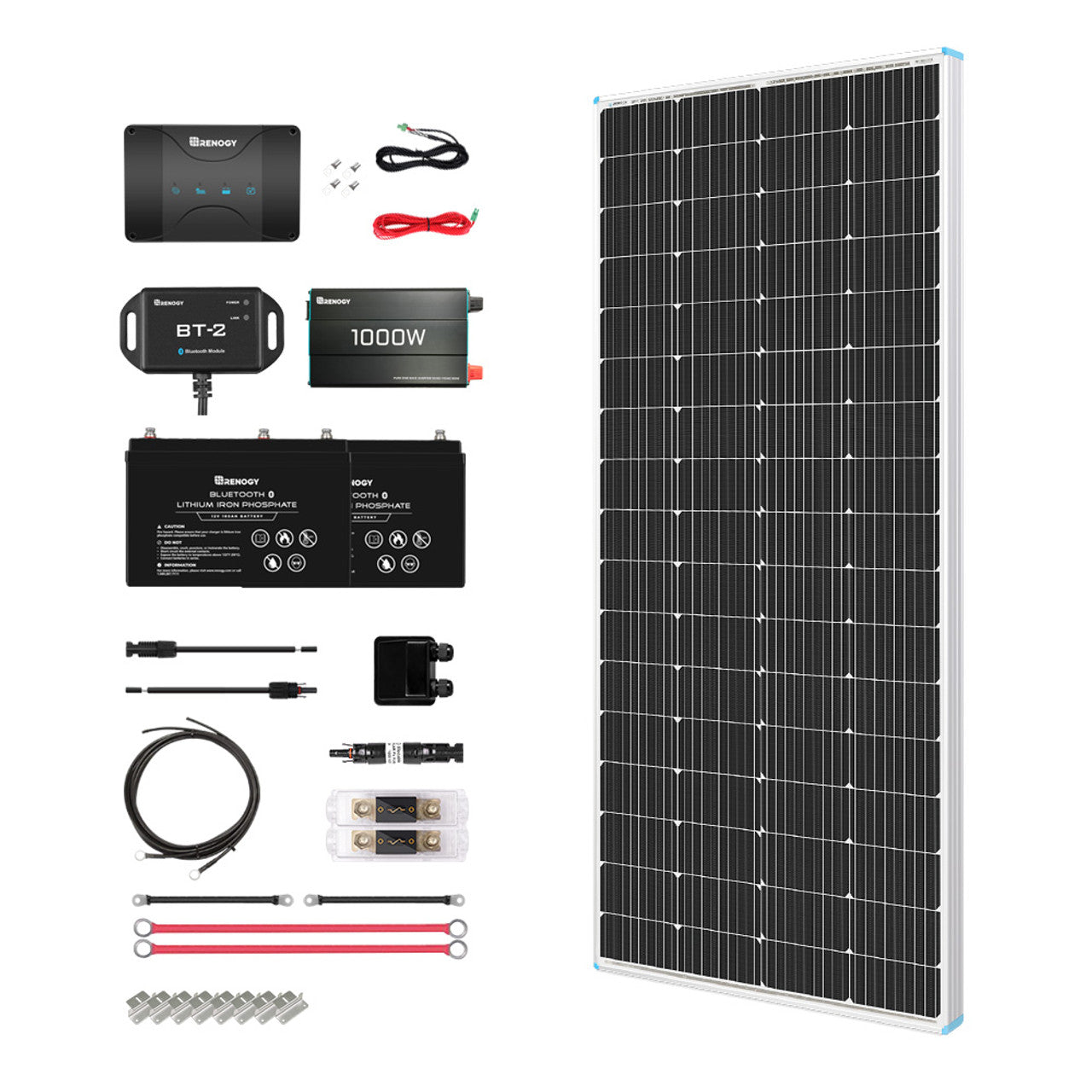

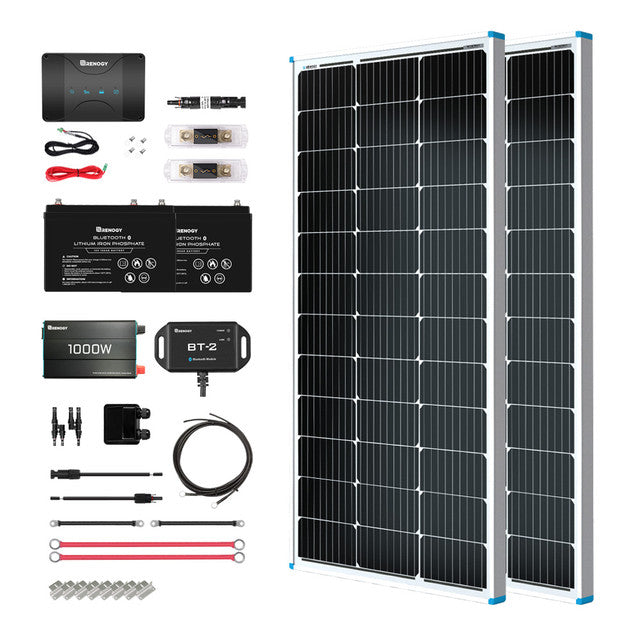

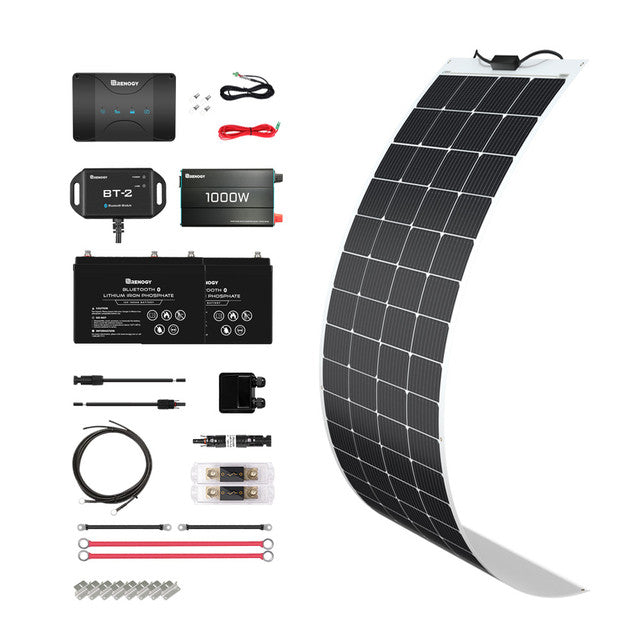

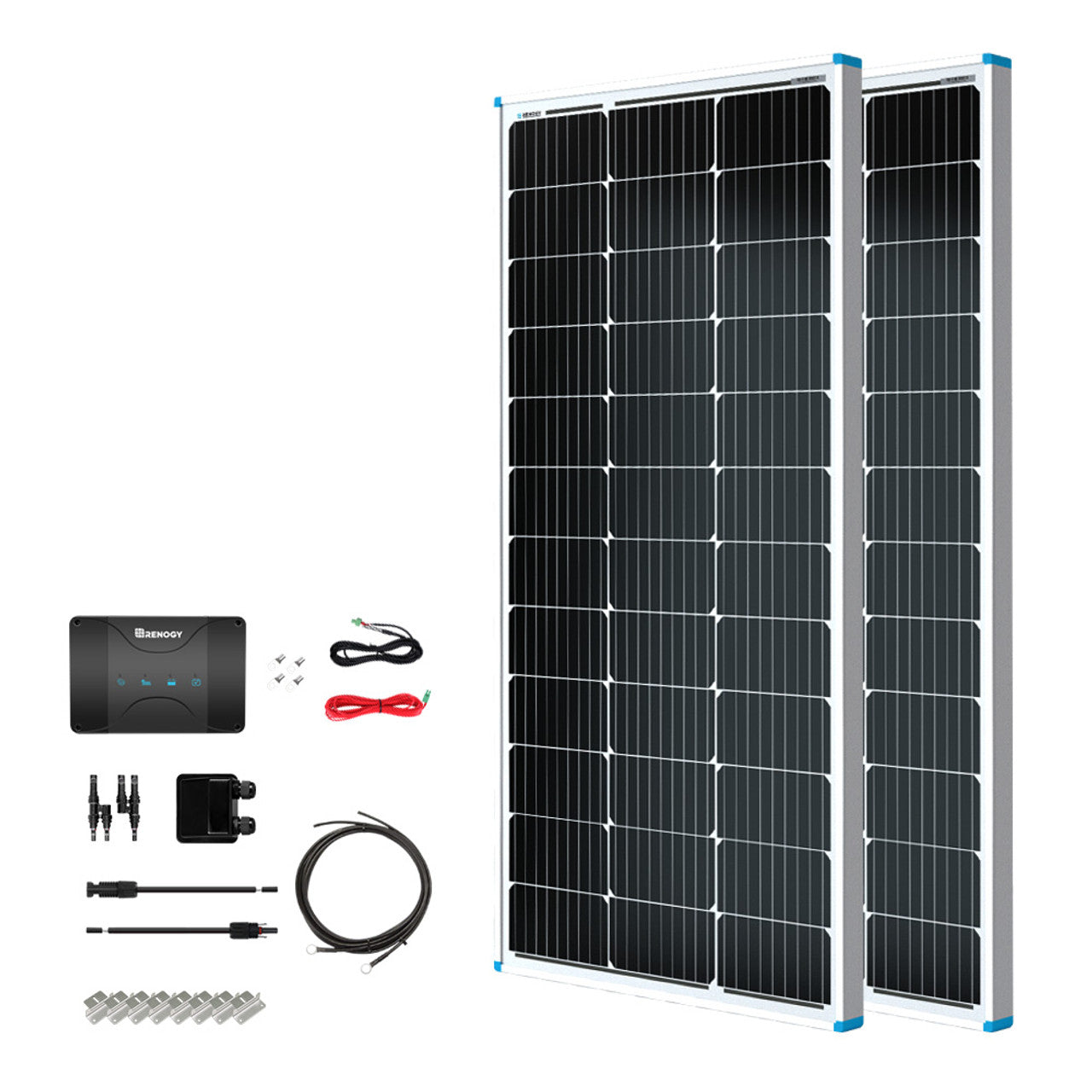

Renogy 200W 12V Solar RV Kit
Renogy 200W 12V Solar RV Kit
Couldn't load pickup availability
Max Power at STC: 100W
Open Circuit Voltage: 24.3V
Short Circuit Current: 5.21A
Optimum Operating Voltage: 20.4V
Optimum Operating Current: 4.91A
Operating Temperature: -40°F to 176°F
Maximum System Voltage: 600V DC (UL)
Maximum Series Fuse Rating: 15A
Dimensions: 41.8 x 20.9 x1.38 in
Weight: 14.1lbs/6.4kg
Maximum Power at STC: 200W
Optimum Operating Voltage (Vmp): 19.2 V
Open-Circuit Voltage (Voc): 23V
Short Circuit Current: 11.05A
Optimum Operating Current (Imp): 10.42 A
Maximum System Voltage: 600V DC
Maximum Series Fuse Rating: 20A
Certifications: CE, ISO
Operating Temperature: -40°F to 194°F (-40ºC to +90ºC)
Dimensions: 58.7 x 27.5 x 1.38 in (1491 x 699 x 35 mm)
Weight: 26.46 lbs (12 kg)
opc:
Maximum Power at STC: 200W
Open-Circuit Voltage (Voc): 23.9V
Short Circuit Current: 10.74A
Optimum Operating Current (Imp): 10.02A
Maximum System Voltage: 600V DC
Maximum Series Fuse Rating: 15A
Operating Temperature: -40°F to 176°F (-40ºC to +80ºC)
Dimensions: 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)
Weight: 4.9 kg / 10.8 lbs
opc:
System Voltage: 9-16VDC
Maximum Charging Current: 30A
Battery Types: SLD/AGM, GEL, FLD, LISER
Service Battery Charging Mode: MPPT
Charging Efficiency: Up to 97%
Max. Solar Input Voltage: 25V
Max. Solar Input Power: 400W
Terminal Size: M8*1.25 - 10mm
Ground Type: Negative
Operating Temperature Range: -31°F - 149°F
Storage Temperature Range: -40°F - 176°F
Dimensions: 9.6*5.7*3.0in
Weight: 3.13Ibs
Communication Protocol: RS485
Battery Type: Lithium Iron Phosphate
Rated Capacity: 100 Ah
Nominal Voltage: 12.8 V
Voltage Range: 10~14.8 V
Cycle Life(0.5C,25℃): 80%DOD 2000 Cycles
Connection Method: Parallel(Up to 8)
Protection Rate: IP65
Charge Voltage: 14.4V
Maximum Continuous Charging Current: 50 A
Maximum Continuous Discharging Current: 100 A
Standard Operation Temperature: 25℃±5℃
Charge Temperature: 32~131°F/ 0~55°C
Discharge Temperature: -4~140°F/ -20~60°C
Communication Port: Modbus
Built-in Bluetooth: Yes
Dimensions: 12.99 x6.77 x 8.43 inch / 330 x 172 x 214mm
Weight: 28.7 lbs. / 13.0 kg
opc:
Battery Type: Lithium Iron Phosphate
Rated Capacity: 100AH
Nominal Voltage: 12.8 V
Cycle Life(0.2C,25℃): 80%DOD 4000 Cycles
Connection Method: Parallel
Protection Rate: IP54
Charge Voltage: 14.4V
Maximum Continuous Charging Current: 50 A
Maximum Continuous Discharging Current: 100 A
Automatically Self-heating Function: Temperature < 41℉(5℃)
Standard Operation Temperature: 25℃±5℃
Storage Temperature: -13~149℉ / -25~65℃
Communication Port: RJ45 (RS485 Protocol)
Built-in Bluetooth: No
Dimensions: 11.4 x 6.8 x 7.4 inch / 289 x 172 x 187.5 mm
Weight: 26 lbs. / 11.8 kg
Continuous Output Power: 1000W
Peak Power Rating: 2000W
Output Voltage: 115V
Output Frequency: 60 Hz ± 0.1%
AC Output Sockets: 2
AC Terminal Block: 1
USB Power Port: 5V/2.1A
Power Output Control: AC On/Off Switch, and Remote Control
Output Waveform: Pure Sine Wave
Nominal Efficiency: > 90%
Operating Temperature Range: -4°F - 104°F
Cooling Fan: Thermally controlled
Dimensions: 12.9 x 6.8 x 3.3 in
Weight: 6.0 lb
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty
