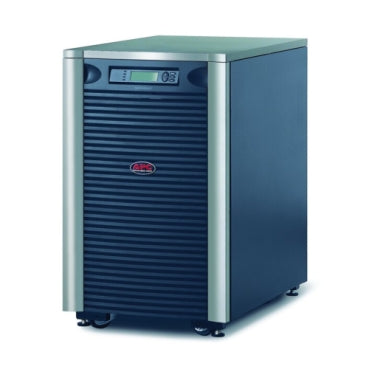

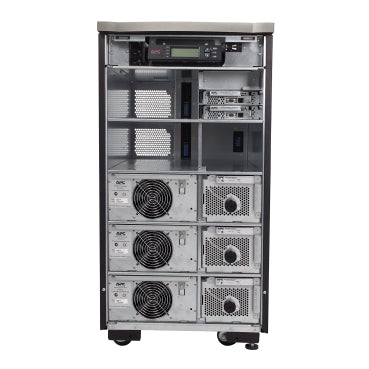

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 208/240V

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 208/240V

$25,200.00 USD
$25,200.00 USD
Sale Sold out
Overview
Lead time Usually in Stock
Main
Run time for load
W
information_stroke

Min-max: 1280-12800 W
5min 57s
Max. Capacity Used
information_stroke
100 %


Main Input Voltage 208 V
Product or Component Type Uninterruptible power supply (UPS)
Other Input Voltage 240 V
Main Output Voltage 120 V
208 V
Other Output Voltage 240 V
Kw Rating 12800 W
Rated power in VA 16000 VA
Output connector type Hard Wire 4-wire (2PH+N+G) 1
Battery Type Lead-Acid battery
Provided equipment CD with software
Installation guide
User Manual
Web/SNMP Management Card
Range of Product Symmetra LX
Batteries & Runtime
Run Time

View Runtime Graph
Efficiency

View Efficiency Graph
Included Battery Modules 4
Battery Slots Empty 0
Typical recharge time 3 h
Additional information Configurable for 120/208 or 120/240 output voltage
Battery Charge Power (Watts) 1148 W rated
Battery Life 3…5 year(s)
Extendable Run Time 1
General
product web sub-family 4kVA power increments
Number of power module free slots 1
Number of power module filled slots 4
Redundant Yes
Physical
color Black
Silver
Height 36.9 in (93.7 cm)
Width 19.02 in (48.3 cm)
Depth 28.6 in (72.6 cm)
Net Weight 678.45 lb(US) (307.74 kg)
mounting location Front
Mounting preference No preference
Mounting Mode Not rack-mountable
Two post mountable 0
USB compatible No
Input
Input Frequency 45...65 Hz auto-sensing
Number of input connectors 1 Hard Wire 4-wire (2PH+N+G)
Efficiency at full load 96...138 V line to neutral
Input Total Harmonic Distortion Less than 7% for full load
Input Power Factor at Full Load 0.98
Output
Max Configurable Power (Watts) 12800 W
Harmonic distortion Less than 5 % at full load
Output Frequency (sync to mains) 47...63 Hz sync to mains
60 Hz +/- 0.1 % for 60 Hz nominal not synced
50 Hz +/- 0.1 % for 50 Hz nominal not synced
Crest factor Up to 5 : 1
Topology Double Conversion Online
Waveform Type Sine wave
Bypass type Internal Bypass (Automatic and Manual)
Maximum output current 75 A
Maximum configurable power in VA 16000 VA
Conformance
Product Certifications CSA
Standards FCC Part 15 class A
UL 1778
Environmental
Ambient Air Temperature for Operation 32…104 °F (0…40 °C)
Relative Humidity 0…95 %
Operating altitude 0...10000 ft
Ambient Air Temperature for Storage 5…113 °F (-15…45 °C)
Storage Relative Humidity 0…95 %
Storage altitude 0…15000 ft (0.0000000000…4572.0000000000 m)
acoustic level 62 dBA
Online Thermal Dissipation 4995 Btu/h
Communications & Management
Free slots 1
Pre-Installed SmartSlot™ Cards Network management card 2 with environmental monitoring

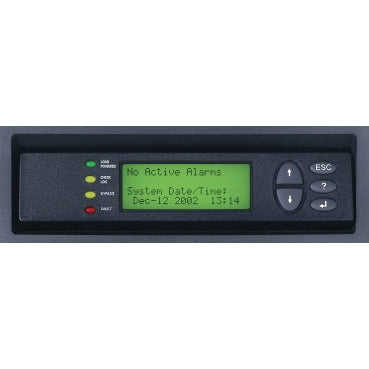

Control panel Multi-function LCD status and control console
Alarm Audible and visible alarms : prioritized by severity
Emergency Power Off (EPO) Yes
Ordering and shipping details
GTIN 731304221531
Country of origin PH
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 46.5 in (118.1 cm)
Package 1 Width 39.3 in (99.7 cm)
Package 1 Length 23.6 in (59.9 cm)
Package 1 Weight 744.59 lb(US) (337.74 kg)
Contractual warranty
Warranty 2 years repair or replace
