APC

APC Switched Rack PDU 2U 30A 120V (AP7902B)

APC Switched Rack PDU 2U 30A 120V (AP7902B)

SKU:AP7902B

Regular price $2,295.00 USD
Regular price Sale price $2,295.00 USD
Sale Sold out
Quantity

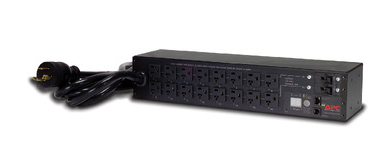

APC Switched Rack PDU 2U 30A 120V (AP7902B)

High-density, outlet-level power control and maximum 120V capacity for demanding edge network racks and remote server environments.

When managing a densely packed 120V network rack in an unstaffed remote facility, basic power strips are a liability. If a single core switch or heavy-draw edge server locks up, dispatching an IT technician for a physical hard reboot drains your operational budget and artificially inflates your downtime. The APC Switched Rack PDU (AP7902B) scales your remote management capabilities by delivering a massive 30 Amps of power across 16 individually controllable outlets. This intelligent, 2U network-grade distribution unit allows your centralized IT team to securely log in and power cycle hung 120V devices instantly, sequence equipment boot-ups to prevent blown breakers, and monitor aggregate current draw in real-time—ensuring total operational control without the costly "truck roll."

Key Features & Benefits:

  • Individual Outlet Control: Gain absolute command over your rack. Turn on, turn off, or reboot any of the 16 individual receptacles remotely. Instantly resolve hung telecom gateways or servers without requiring on-site staff.

  • Maximum 120V Capacity: Push the absolute limit of standard low-voltage electrical grids. Utilizing a robust 30-Amp input, the AP7902B safely delivers the massive capacity needed to fully populate your network rack with high-draw equipment without migrating to 208V power.

  • Power Sequencing & Delays: Prevent catastrophic inrush current overloads. Define the exact order and time delays in which equipment powers up after a grid failure, ensuring your facility breakers and UPS systems are never overwhelmed simultaneously.

  • Automated Load Shedding: Maximize your critical UPS runtime. Configure the PDU to automatically drop power to non-essential hardware during an extended blackout, preserving crucial battery life for your core networking switches.

  • Active Current Monitoring: A built-in digital display provides real-time local aggregate current draw, while the embedded network interface sends automated threshold alarms directly to your smartphone before a circuit overload occurs.

Technical Specifications:

  • Maximum Total Current Draw: 30 Amps

  • Nominal Input / Output Voltage: 120V

  • Input Plug Type: NEMA L5-30P (Requires a dedicated 30-Amp twist-lock wall receptacle)

  • Output Receptacles: (16) NEMA 5-20R

  • Network Integration: Embedded 10/100 Base-T Ethernet port (Supports Web, SNMP, Telnet)

  • Form Factor: 2U Horizontal Rack-Mount (Includes mounting hardware)
