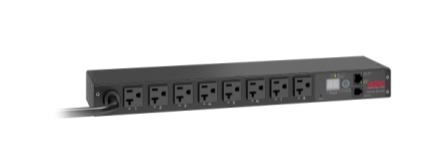

APC Switched Rack PDU 1U 20A 120V (AP7901B)
APC Switched Rack PDU 1U 20A 120V (AP7901B)
SKU:AP7901B
Couldn't load pickup availability
APC Switched Rack PDU 1U 20A 120V (AP7901B)
Gain absolute, outlet-level control over your remote 120V network racks with this intelligent, switched 1U power distribution unit.
When a critical edge router or PoE switch hangs in an unstaffed remote branch office, sending a highly paid IT technician on a two-hour "truck roll" just to unplug a device and plug it back in is a massive waste of your operational budget. The APC Switched Rack PDU (AP7901B) eliminates the need for manual resets. This intelligent, network-grade 1U power distribution unit provides secure, remote, outlet-level power management. Your network operations team can securely log into the web interface and power cycle individual unresponsive 120V devices instantly, shed non-essential loads during a UPS battery event, and monitor aggregate power draw to prevent tripped breakers—all without ever leaving their desks.
Key Features & Benefits:
-
Individual Outlet Control: Turn on, turn off, or reboot individual receptacles remotely. Instantly resolve hung telecom gateways or servers without requiring on-site staff or expensive third-party dispatches.
-
Power Sequencing & Delays: Prevent catastrophic inrush current overloads. The AP7901B allows users to define the exact order and time delays in which equipment powers up after a grid failure, ensuring your UPS and facility breakers are never overwhelmed.
-
Remote Network Management: Equipped with an embedded network interface. Easily integrate the PDU into your enterprise architecture via secure Web, SNMP, or Telnet interfaces, and manage multiple units through Schneider Electric’s EcoStruxure IT platform.
-
Automated Load Shedding: Maximize your UPS runtime. Configure the PDU to automatically drop power to non-essential hardware (like monitors or secondary storage) during an extended blackout, preserving crucial battery life for your core networking switches.
-
Active Current Monitoring: A built-in digital display provides real-time local aggregate current draw, while the network interface sends automated threshold alarms directly to your smartphone before a circuit overload occurs.
Technical Specifications:
-
Maximum Total Current Draw: 20 Amps
-
Nominal Input / Output Voltage: 120V
-
Input Plug Type: NEMA L5-20P (Typically includes a NEMA 5-20P adapter cord)
-
Output Receptacles: (8) NEMA 5-20R
-
Network Integration: 10/100 Base-T Ethernet port
-
Form Factor: 1U Horizontal Rack-Mount (Includes mounting hardware)
