APC Smart-UPS X 3000VA Rack/Tower LCD 120V with Network Card (SMX3000LVNC)

Maximum-capacity 30-Amp extended runtime with pre-installed, enterprise-grade network management for strict-security IT environments.

When your enterprise data center, healthcare facility, or government network demands the absolute maximum power you can draw from a single-phase 120V circuit, you cannot afford compromises on runtime or cybersecurity. The APC Smart-UPS X 3000VA (SMX3000LVNC) delivers on all fronts. Delivering a massive 2700 Watts of pure sine wave power, this 4U heavyweight protects your fully populated server racks and core routing equipment. But its true value lies in the "NC" designation. Out of the box, this unit includes a pre-installed APC Network Management Card, allowing you to bypass restricted cloud-managed platforms and plug directly into your secure VLAN. Enjoy localized SNMP management, environmental monitoring, and unattended graceful shutdowns, all while retaining the ability to daisy-chain external batteries for hours of critical uptime.

Key Features & Benefits:

• Pre-Installed Network Management Card: Skip the aftermarket upgrades and cloud security risks. Ships with a factory-installed NMC (such as the AP9641), unlocking immediate integration into EcoStruxure IT and third-party enterprise management systems via SNMP, BACnet, or Modbus on your secure local network.

• Scalable Extended Runtime: Built for survival. Seamlessly daisy-chain multiple external APC battery packs (SMX120BP) to scale your uptime from minutes to multiple hours, ensuring your core network stays live until utility power returns or the standby generator takes the load.

• High-Density 2700-Watt Capacity: Maximizes your 30-Amp circuit. By delivering an ultra-efficient 2700 Watts of real power (0.9 Power Factor), this unit easily supports heavier server chassis and denser telecom switches than legacy 3kVA models.

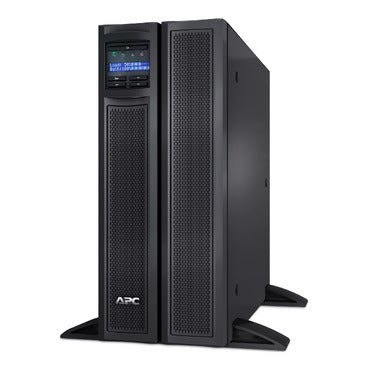

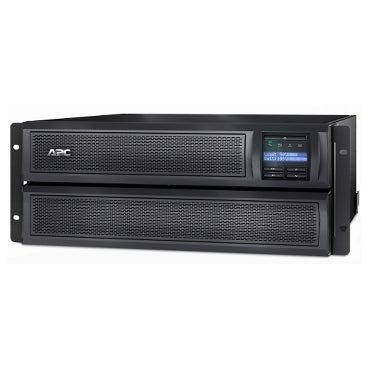

• Rack/Tower Convertible: Engineered for physical versatility. This robust 4U chassis ships with both tower-mounting feet and heavy-duty rack-mount rails, adapting effortlessly to your evolving data center layout.

• Pure Sine Wave & AVR: Simulates utility power flawlessly. Employs active Automatic Voltage Regulation to trim high-voltage spikes and boost low-voltage sags without draining the battery, ensuring maximum cell lifespan and 100% compatibility with Active PFC power supplies.

Technical Specifications:

• Output Power Capacity: 2700 Watts / 3000 VA

• Input Plug Type: NEMA L5-30P (Note: Requires a dedicated 30-Amp twist-lock wall receptacle; will not plug into a standard 15-Amp or 20-Amp wall outlet)

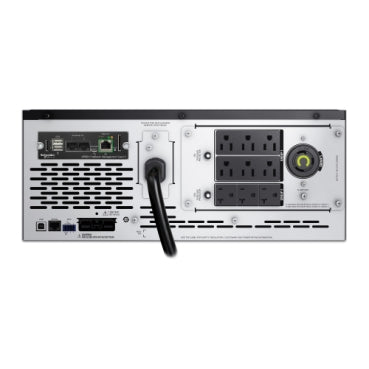

• Output Receptacles: (3) NEMA 5-15R, (3) NEMA 5-20R, (1) NEMA L5-30R

• Nominal Input/Output Voltage: 120V

• Topology: Line Interactive (Pure Sine Wave)

• Form Factor: 4U Rack-Mount / Tower Convertible
