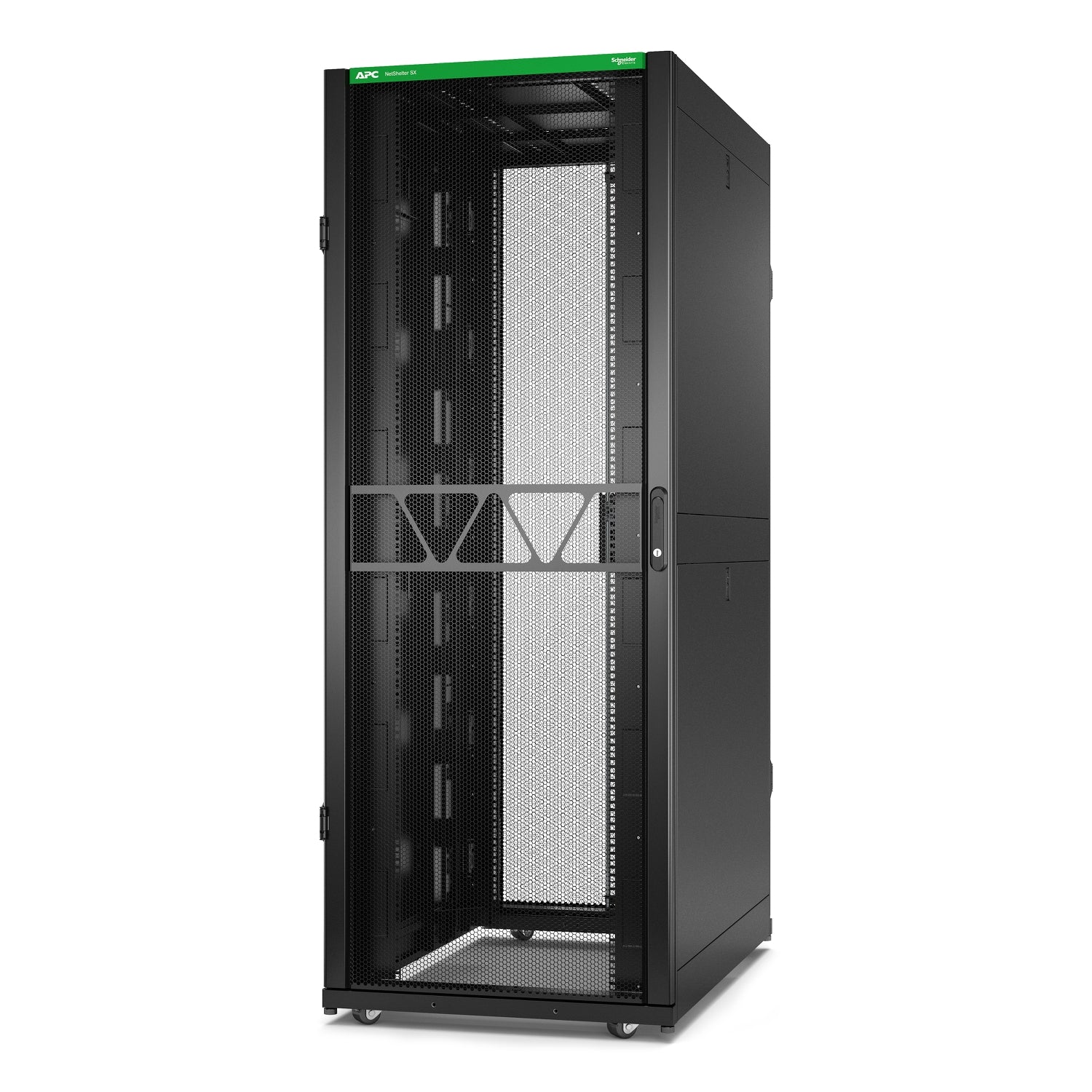

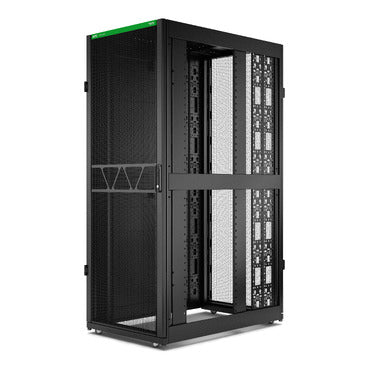

APC NetShelter SX 42U Server Rack Enclosure 750mm x 1200mm Deep (AR3350B2)

APC NetShelter SX 42U Server Rack Enclosure 750mm x 1200mm Deep (AR3350B2)

SKU:AR3350B2

Regular price $4,400.00 USD
Regular price Sale price $4,400.00 USD
Sale Sold out
Quantity

Extra-wide, extra-deep, high-density IT enclosure engineered for massive cable volumes and side-to-side airflow networking gear.

Standard server racks are built for standard servers, but what happens when you need to deploy a massive core network switch, a high-density SAN, and miles of CAT6 cable in the exact same cabinet? A standard 600mm wide rack will instantly choke your airflow and crush your cables. The APC NetShelter SX 42U (AR3350B2) is the ultimate problem solver for high-density infrastructure. By combining an extra-wide 750mm (29.5 inches) stance with an extended 1200mm (47.2 inches) depth, this premium enclosure provides the critical side clearance required for thick network cable bundles and the side-to-side airflow demanded by high-end Cisco and Juniper switches. Stop cramming your enterprise gear into restrictive metal boxes; give your network the physical space it needs to breathe and perform.

Key Features & Benefits:

  • Extra-Wide 750mm Footprint: The absolute champion of cable management. The extra 150mm of width compared to standard racks provides massive vertical space on the sides of the EIA-310 mounting rails, allowing you to route high-density networking cables without blocking server exhaust fans.

  • Extended 1200mm Depth: Accommodates the deepest enterprise servers and blade chassis on the market, while leaving plenty of room in the rear for zero-U power distribution and hot-aisle containment.

  • Optimized Side-to-Side Airflow: Many large core switches pull cold air from the side rather than the front. The AR3350B2's extra width provides the necessary clearance to ensure these critical networking devices don't overheat in a densely populated row.

  • Integrated Zero-U Accessory Channels: Maximize your 42U of equipment space. The rear channels allow you to vertically mount up to four APC Toolless PDUs or heavy-duty vertical cable organizers without sacrificing a single unit of front-facing rack space.

  • Vendor-Neutral & Rugged: Supports a massive 3,750 lbs of static load. Guaranteed EIA-310 19-inch rack-mount compliance ensures flawless integration with hardware from any major IT vendor.

Technical Specifications:

  • Rack Height: 42U

  • External Dimensions: 750mm (29.53") Wide x 1200mm (47.24") Deep x 1991mm (78.39") High

  • Static Load Capacity: 3,750 lbs (1700 kg)

  • Dynamic (Rolling) Load Capacity: 2,250 lbs (1020 kg)

  • Color: Black

  • Included Hardware: Casters, leveling feet, roof, side panels, doors, and a bag of cage nuts/screws.
