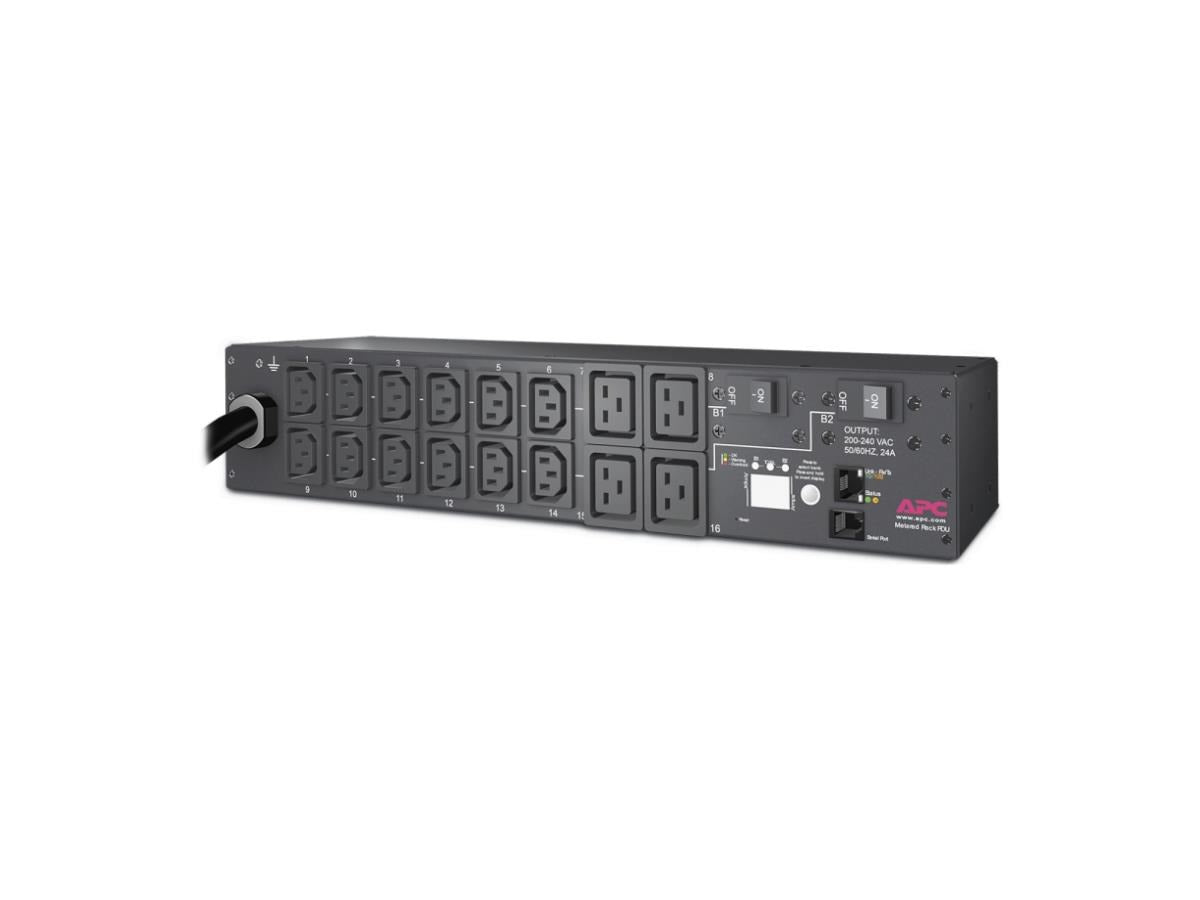

APC Netshelter Metered Rack PDU (AP7811B)
APC Netshelter Metered Rack PDU (AP7811B)
SKU:AP7811B
Couldn't load pickup availability
Intelligent 5.0kW power distribution with real-time remote monitoring to prevent circuit overloads.
Don't guess how much power your rack is drawing—know exactly. The APC AP7811B Metered Rack PDU is engineered for high-density IT environments operating on 208V power. Delivering up to 5.0kW of reliable power, this 2U horizontal unit features an integrated network interface that empowers your IT staff to actively monitor load levels from anywhere. By setting custom, user-defined alarm thresholds, you receive real-time alerts before a tripped breaker brings down your critical infrastructure. Complete with a mix of C13 and C19 receptacles, the AP7811B is the ideal solution for protecting enterprise servers, blade chassis, and telecom equipment.
Key Features & Benefits:
-
Active Load Monitoring: Access your PDU remotely via a secure Web interface, SNMP, or Telnet to view aggregate power draw in real-time. Optimize your energy usage and safely plan for rack capacity expansions.
-
Proactive Alarm Thresholds: Configure custom alerts to warn your team of potential circuit overloads before IT failures occur.
- Local Digital Display: Technicians working in the data center can view the current draw directly on the unit's local LED display, ensuring optimal load distribution during the "rack and stack" process
- Versatile Receptacle Mix: Designed for modern networking gear, offering a robust combination of both C13 (standard server) and high-draw C19 (blade/switch) outlets.
Technical Specifications:
- Input Plug Type: NEMA L6-30P (Attached 12-foot power cord)
- Output Receptacles: (12) IEC 60320 C13 & (4) IEC 60320 C19
- Nominal Input/Output Voltage: 208V
- Maximum Line Current: 24 Amps (Derated from 30A per UL/regulatory safety standards)
- Form Factor: 2U Rack-Mountable (Horizontal)
- Load Capacity: 4992 VA (approx. 5.0kW)
