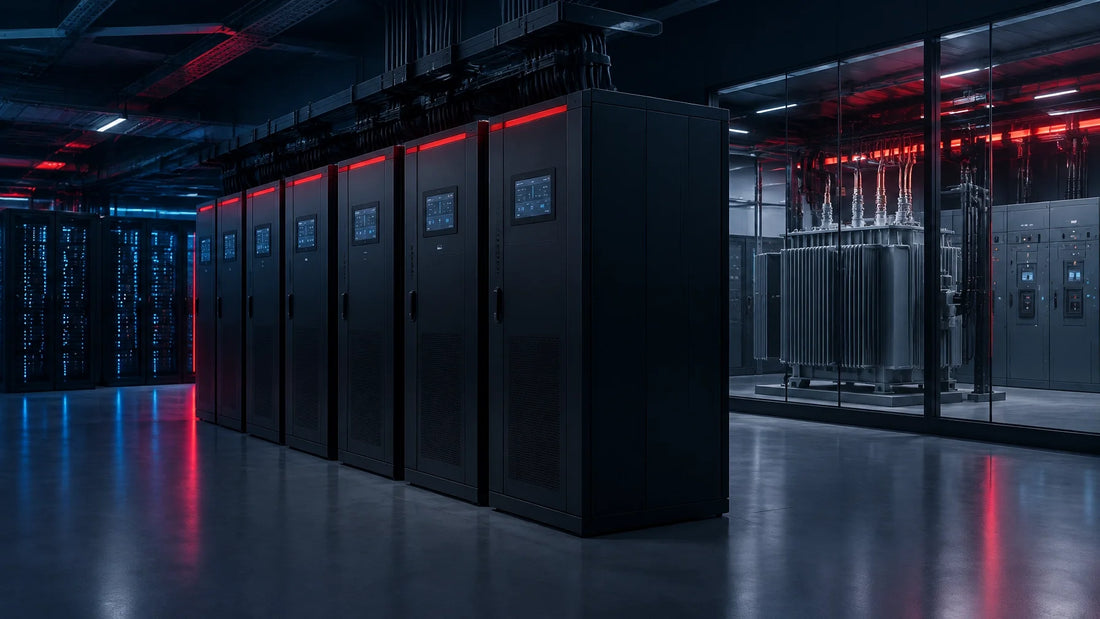

AI data center power infrastructure with modular UPS cabinets, battery storage, medium-voltage distribution equipment, and se

Protecting the Grid from AI Data Centers (and Vice Versa): A Facility Manager's Guide

AI data centers have created a two-way power protection problem. The grid must deliver stable electricity to increasingly dense GPU clusters, while the facility must prevent those same clusters from creating disruptive changes in demand.

Traditional data center power design focused primarily on one objective: protecting critical IT equipment from outages, sags, surges, and frequency disturbances. That objective remains essential. But modern AI workloads can introduce rapid load changes that affect transformers, feeders, and the broader grid. Facility managers now need a power architecture that works in both directions.

As UpSite reported on September 3, 2026, AI data centers may experience power swings of 70% or more in milliseconds. At campus scale, a sudden change is not simply an internal efficiency concern. It can become an interconnection, power-quality, and grid-reliability issue.

Why Now: The Status Quo Is Failing

AI racks are significantly more power-dense than conventional enterprise racks. Depending on the server platform and cooling architecture, AI deployments can reach approximately 50–150 kW per rack, with some designs exceeding those levels. A conventional UPS and distribution design may support the steady-state load yet perform poorly when the load changes quickly.

This is where Latency, Redundancy, and Thermal Management intersect.

A voltage disturbance that would have been manageable for a traditional server room can challenge high-density GPU systems, power-conversion equipment, and liquid-cooling pumps. If a facility trips offline too quickly, it may create a sudden multi-megawatt reduction in grid demand. If it remains connected without adequate conditioning, the facility may expose its own equipment: and the utility system: to unstable voltage, harmonics, or frequency behavior.

The result is a new operating requirement: the data center must be resilient without becoming electrically unpredictable.

Emerging large-load guidance is also changing utility expectations. Interconnection studies increasingly require more than a maximum-demand figure. Utilities and transmission planners may request detailed models of UPS systems, rectifiers, generators, cooling loads, battery systems, and AI workload behavior. The facility must be able to demonstrate how it responds to faults and how it will communicate during grid emergencies.

Protecting AI Loads From the Grid

The first direction of protection is familiar: maintain clean, continuous power for critical IT and cooling equipment.

A modern AI facility should evaluate its power chain from the utility service entrance through medium-voltage distribution, transformers, switchgear, UPS systems, PDUs, rack-level power supplies, and cooling infrastructure. Every conversion stage can introduce a failure mode or a power-quality challenge.

UPS ride-through is the first line of defense

A UPS should do more than provide battery runtime after a complete outage. It should help the facility remain stable through short-duration voltage sags, frequency deviations, switching events, and utility faults.

When evaluating a UPS for AI infrastructure, facility managers should request documented performance for:

  • Voltage and frequency ride-through
  • Transfer and response behavior
  • Battery discharge and recharge rates
  • Short-circuit and fault-clearing coordination
  • Harmonic-current performance
  • Operation at the facility’s actual load range
  • Communications and remote-control capabilities

Modern double-conversion UPS systems commonly advertise efficiencies in the mid-to-high 90% range, with some operating modes reaching approximately 96–99% under suitable conditions. However, efficiency should never be evaluated separately from ride-through capability, redundancy, thermal performance, and maintenance requirements.

For a Tier III objective, an N+1 UPS architecture with maintainable distribution paths may be appropriate. Tier IV designs generally require independently redundant systems and paths capable of supporting the critical load after a single worst-case failure. The correct choice depends on the facility’s availability target, workload design, service-level agreements, and business impact of downtime.

Mission-critical UPS battery room with modular power cabinets and real-time status displays

Cooling is part of the power-protection system

AI equipment cannot be protected by securing the electrical load alone. High-density GPU systems can generate substantially more heat than traditional racks, and liquid-cooling pumps, controls, heat exchangers, and distribution units may be just as critical as the servers.

A power event that interrupts coolant circulation can create a thermal incident even when the IT load remains energized. Facility managers should therefore map UPS-backed power to:

  • Coolant distribution units
  • Pump controls
  • Chilled-water or dry-cooler systems
  • Air-handling and containment equipment
  • Network and management systems
  • Leak detection and safety controls

The power-protection design should define what happens during a utility disturbance, a generator start, an UPS transfer, and a controlled load reduction. Those sequences should be tested under realistic operating conditions: not only simulated from a control panel.

Protecting the Grid From AI Loads

The second direction is newer and more complex: making the data center a predictable grid participant.

An AI workload can ramp rapidly when training jobs begin, inference demand changes, or multiple clusters synchronize. The facility may also experience rapid reductions when jobs end, software throttles the GPUs, or protective controls respond to a disturbance.

The goal is not necessarily to prevent every change in demand. The goal is to control the rate, timing, and electrical impact of those changes.

Use the power system as a buffer

Battery energy storage, bidirectional power-conversion systems, and advanced UPS platforms can act as a buffer between volatile compute loads and the utility connection.

In one architecture described by UpSite, a 3.5 MW AI UPS combines power-conversion equipment, batteries, transformers, and controls to condition power flowing to the data center while absorbing or smoothing fast load changes seen by the grid. Other approaches use rectifiers, DC-side storage, or power-quality equipment to provide voltage ride-through and reduce the number of abrupt AC-side transitions.

These systems must be engineered for the specific site. A battery sized for 10 minutes of traditional UPS runtime may not be configured for repeated short-duration smoothing events. Conversely, a system designed for grid services may require different controls, battery operating limits, state-of-charge reserves, and utility agreements.

The facility manager should ask:

  • What ramp rate can the system absorb or deliver?
  • How much energy is reserved for a grid outage?
  • How does grid-support operation affect battery life?
  • What happens when state of charge is low?
  • Can the system transition from smoothing to full UPS backup?
  • Who has authority to change operating modes?

Control workload behavior, not just electrical behavior

Power protection is more effective when IT and facilities teams work together. Workload orchestration can reduce the electrical volatility that hardware must manage.

Potential measures include:

  • Staggering large job launches
  • Scheduling batch training during lower-demand periods
  • Applying GPU power caps where performance permits
  • Maintaining minimum and maximum ramp limits
  • Shifting non-urgent workloads between campuses
  • Curtailing non-critical computing during grid emergencies

These controls should be coordinated with the utility and documented in the facility’s operating procedures. A software control that reduces GPU power may protect the grid, but an uncontrolled command that drops an entire cluster can create the same sudden load loss the facility is trying to prevent.

Power Quality and Grid Compliance

AI data centers should treat power quality as a measured engineering requirement, not an assumption.

High-power converters, UPS systems, and server power supplies can contribute to harmonic distortion, phase imbalance, neutral currents, voltage flicker, and fast transients. Design teams should evaluate the point of common coupling against applicable utility requirements and IEEE 519 practices for harmonic control.

Possible mitigation measures include:

  • Active harmonic filters
  • Low-distortion UPS and rectifier designs
  • Phase balancing and load redistribution
  • Continuous waveform and event monitoring
  • Coordinated transformer and switchgear protection
  • Utility-approved ride-through and trip settings
  • Dynamic fault recording at major electrical interfaces

Do not copy ride-through settings from another facility. Voltage and frequency limits, clearing times, islanding rules, and emergency operating requirements vary by utility and interconnection agreement. The correct settings must be validated through studies, commissioning tests, and direct utility coordination.

The Grid-Ready AI Data Center Roadmap

Facility managers can begin with five practical steps.

  1. Build a dynamic load profile.
    Measure the AI load at useful time intervals, including ramp rates, peak demand, minimum demand, cooling load, and simultaneous job-start scenarios. A monthly utility bill is not enough.

  2. Model the complete electrical chain.
    Include utility service, transformers, switchgear, UPS modules, batteries, generators, rectifiers, PDUs, cooling equipment, and representative rack loads. Ask vendors for validated models rather than relying only on generic defaults.

  3. Define ride-through and islanding logic.
    Establish when the facility should remain connected, when it should use UPS support, and when it should transfer or island. Align protection settings with the utility’s requirements and the UPS manufacturer’s documented capabilities.

  4. Add power-quality monitoring and controls.
    Monitor harmonics, voltage, frequency, imbalance, transients, battery state of charge, and load ramps. Connect these measurements to a secure remote-monitoring platform so operators can identify deterioration before it becomes an outage.

  5. Test with the utility and IT teams.
    Conduct integrated commissioning exercises that include a voltage sag, frequency event, UPS response, generator start, cooling response, workload reduction, and restoration. Confirm that communications responsibilities are clear before a real event occurs.

Facility engineers reviewing UPS, battery, switchgear, and power-quality systems in a mission-critical data center

Monitoring Turns Protection Into Operations

A resilient AI data center cannot depend on alarms that are reviewed after the event. Operators need real-time visibility across the electrical and digital infrastructure.

That includes UPS health, battery impedance, temperature, state of charge, breaker status, generator readiness, power quality, rack demand, and cooling conditions. Remote monitoring should also provide role-based access, secure communications, event history, and escalation workflows.

AI and IoT-enabled power management can help identify abnormal patterns, but automation must be governed carefully. A recommendation engine should not be allowed to change grid-interconnection settings without engineering review and approved operating logic.

This is where Real-Time Solutions become practical: hardware, software, installation, and support must operate as one system.

A More Responsible Model for AI Infrastructure

The next generation of data centers will not be judged only by how much compute they can host. They will also be judged by how predictably they interact with the power system.

The winning design will protect AI workloads from outages while limiting the impact those workloads have on the grid. It will combine UPS systems, batteries, IT racks, power distribution, cooling, monitoring, remote control, and coordinated operating procedures.

At Ace Real Time Solutions, we design and install customized power-protection systems for data centers and businesses. Our team can help evaluate UPS architecture, battery capacity, power quality, redundancy, monitoring, and facility-wide continuity requirements. Visit our services page or request an enterprise solution to discuss a power audit, technical specification, or solution design.

FAQ: AI Data Centers and Grid Protection

What is bidirectional power protection for an AI data center?

Bidirectional power protection protects the data center from grid instability while also reducing the facility’s impact on the grid. It may combine UPS systems, batteries, power-conversion equipment, filtering, ride-through controls, and workload management.

How does an AI data center affect grid stability?

AI facilities can create rapid changes in demand as GPU workloads start, stop, or change intensity. At large scale, those changes can contribute to voltage fluctuations, transformer stress, harmonics, and sudden load loss if the facility disconnects during a disturbance.

How can a facility manager make an AI data center more grid-friendly?

Start by measuring dynamic load behavior, modeling the complete power chain, validating ride-through settings, monitoring power quality, adding energy storage or smoothing controls where appropriate, and coordinating operating procedures with the utility and IT teams.
