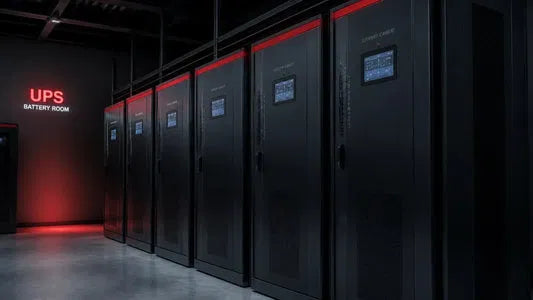

UPS cabinets in a dark data center battery room with red accent lighting

The UPS Is Uninterruptible. Its Future Isn't. Where the Backup Layer Still Wins

The State of the Union

Data center power architecture is under pressure from both directions. On the supply side, grid interconnection queues, constrained substations, volatile demand, and longer equipment lead times are forcing operators to reconsider how much power protection must be centralized. On the demand side, AI infrastructure is increasing rack density, creating fast load swings, and pushing new facilities toward medium-voltage distribution, battery energy storage systems (BESS), and grid-interactive controls. The October 6, 2026 analysis from Data Center Knowledge captures the central question: if batteries, inverters, and controls can perform more power-management functions, does the conventional UPS still deserve its place at the center?

The answer is not a simple yes or no. Liquid cooling is also changing the resilience equation. A cooling distribution unit, pump, control system, or chiller can become a critical load when a 50 kW rack becomes a 100 kW rack, or when an AI cluster approaches hundreds of kilowatts per rack. Meanwhile, power protection supply chains remain exposed to transformer, switchgear, battery, and power-conversion lead times. The result is a move away from one monolithic backup decision and toward a coordinated architecture in which UPS systems, BESS, generators, rack-level battery backup units, and intelligent controls each have a defined job.

Why Now: Latency, Redundancy, and Thermal Management

The conventional UPS remains valuable because it solves a specific problem exceptionally well: it protects critical equipment from the instant a power disturbance occurs.

An online double-conversion UPS continuously converts incoming AC to DC and then recreates a conditioned AC output through its inverter. When utility power fails, the battery supports the DC link. There is no mechanical transfer from utility to inverter, so the practical transfer time to the protected load is 0 milliseconds.

That matters because latency is not limited to network packets. A voltage sag lasting only a few cycles can destabilize sensitive power supplies, network equipment, storage systems, or cooling controls. A line-interactive UPS may transfer in roughly 2–4 milliseconds, while an online UPS avoids that transfer event altogether.

The UPS also provides:

  • Voltage and frequency regulation
  • Harmonic filtering and power-quality conditioning
  • Electrical isolation between the utility and critical loads
  • A controlled maintenance-bypass path
  • Predictable battery-backed ride-through
  • A well-understood operating model for facilities, insurers, and auditors

Efficiency is part of the debate. Modern online UPS systems may deliver approximately 97–97.5% efficiency in double-conversion mode, depending on the model and load. Higher figures, often 98–99%, may apply to economy, eConversion, or dynamic operating modes that reduce the degree of continuous isolation. Those modes can be highly useful, but they should not be treated as identical to full double conversion.

The alternative architectures are advancing quickly. BESS can provide minutes or hours of energy instead of the short ride-through typically associated with a conventional UPS battery string. Rack-level BBUs or capacitors can absorb short-duration events close to the IT load. Medium-voltage UPS systems can move power conversion upstream, reducing low-voltage current and copper. Grid-forming inverters can establish voltage and frequency, support islanded operation, and make the facility a more controllable grid asset.

That does not make the UPS obsolete. It means the function is being redistributed.

High-capacity power distribution units and server racks in a data center

Why “The UPS Is Dead” Is the Wrong Conclusion

A BESS is not automatically a UPS. A generator is not automatically a UPS. A grid-forming inverter is not automatically a complete protection system.

Each technology addresses a different combination of response time, energy duration, power quality, fault behavior, and operating control. A BESS may provide excellent energy capacity but still require careful engineering for no-break transfer, short-circuit contribution, protection coordination, islanding, black start, and failure modes. A rack-level battery may handle a fast transient but cannot replace hours of generator support. A generator can run for an extended outage but cannot regulate every voltage disturbance in real time.

The stronger model is a three-layer architecture:

  1. Instantaneous protection: Online UPS systems, rack-level BBUs, fast DC storage, and power-conditioning equipment protect the load from disturbances measured in milliseconds or seconds.
  2. Energy storage and source arbitration: BESS, medium-voltage UPS, and grid-forming power-conversion systems provide ride-through, load shaping, demand response, and islanded operation.
  3. Long-duration generation: Generators, fuel systems, renewable generation, and extended-duration storage support the facility when an outage lasts beyond the available battery window.

This layered approach also clarifies redundancy. A Tier III facility must be concurrently maintainable: planned maintenance on capacity components or distribution paths should not interrupt the IT load. Tier IV adds fault tolerance, requiring the facility to withstand a single equipment failure or distribution-path interruption without affecting operations.

Neither tier is achieved simply by purchasing a UPS with a “0 ms” transfer time. The complete topology matters: UPS modules, switchgear, batteries, bypasses, distribution paths, controls, cooling, and maintenance procedures. The same is true when replacing a central UPS with BESS. Removing one failure mode may introduce new dependencies in inverter firmware, battery management, protection settings, communications, and grid-interconnection controls.

The 2027 Facility Refresh Problem

Consider a facility planning a power-system refresh in 2027. The existing site has a centralized 2 MW UPS plant, N+1 modules, lead-acid batteries, and generator backup. Its current IT racks average 12–18 kW, but a new AI pod could require 50–100 kW per rack. Liquid cooling is being evaluated, and the utility has warned that the next service upgrade may take several years.

The wrong question is: Should the facility buy another central UPS?

The better questions are:

  • Which loads require true zero-transfer protection?
  • Which loads can tolerate a short ride-through at the rack or DC bus?
  • How much energy is needed for five seconds, five minutes, or two hours?
  • Should power conversion move from low voltage to medium voltage?
  • Can the BESS support grid services without compromising backup readiness?
  • Are pumps, CDUs, controls, and networking included in the resilience model?
  • Does the design preserve the requirements of Tier III or Tier IV certification?

A central UPS replacement may still be the right decision. But in a high-density expansion, the next investment dollar may be better allocated across an MV power-conversion platform, additional BESS capacity, rack-level protection, cooling redundancy, and monitoring rather than simply increasing centralized UPS megawatts.

The Architecture Decision Roadmap

1. Map the load by response time and duration

Create a load inventory that separates critical IT, networking, storage, cooling controls, pumps, CDUs, chillers, security, and building systems. Record the required response time and runtime for each category.

For example, a network core may require 0 ms transfer and 15 minutes of UPS support. A pump controller may require fast ride-through but only 30 seconds of energy. A generator may support the facility for 24 hours, but only if the control system and fuel infrastructure remain powered.

Do not size the entire facility around one runtime assumption.

2. Establish the real power profile, not the nameplate profile

Measure steady-state demand, inrush current, power factor, harmonic content, and rapid load swings. AI training and checkpoint events can create faster changes than traditional enterprise workloads.

Document both total facility MW and rack-level density. A 10 MW facility with 20 kW racks has a different electrical design problem from a 10 MW facility with 80 kW liquid-cooled racks. Future designs should also identify whether the roadmap includes 100 kW-plus racks or emerging systems approaching the MW-per-rack class.

3. Compare centralized, distributed, and medium-voltage options

Evaluate at least three configurations:

  • Centralized online UPS with N+1 or 2N redundancy
  • Distributed rack-level or sidecar battery protection
  • Medium-voltage UPS or BESS with grid-forming capability

Compare more than capital cost. Include footprint, conversion losses, battery replacement, fault clearing, maintenance access, controls integration, construction schedule, and the consequences of a single inverter or communications failure.

For a 2–10 MW campus, moving conversion upstream can reduce low-voltage current and cabling. But it also raises the importance of medium-voltage protection, isolation, commissioning, and qualified service support.

4. Define efficiency at the operating point

Require vendors to provide efficiency curves at the expected load range, not only a maximum headline value. Specify the result for:

  • Online double-conversion operation
  • Economy or eConversion operation
  • Battery charging
  • N+1 operation
  • Low-load conditions
  • Harmonic filtering and power-factor correction

A 99% operating mode may reduce losses, but the facility must understand what happens during a disturbance and whether the output remains isolated. At 100 MW, even a one-percentage-point improvement represents substantial energy and cooling savings. At the same time, an efficiency gain is not worth compromising power quality or maintainability.

5. Test the architecture as a system

Before committing to a 2027 refresh, require scenario-based testing. Validate utility loss, generator start, islanding, black start, battery depletion, inverter failure, bypass operation, selective coordination, cooling-loop transients, and loss of communications.

Use real or realistically emulated AI load profiles. Confirm that the protection layer supports the IT load and the thermal-management layer together. Continuous monitoring should provide battery health, UPS status, BESS state of charge, inverter alarms, rack power, and cooling-system dependencies.

Ace Real Time Solutions treats this as a combined hardware, software, and lifecycle decision, not a box purchase.

Data center racks alongside cooling infrastructure and overhead power and network pathways

What This Means for Procurement

The procurement cycle must start earlier and become more specific. A request for proposal should define the required architecture, response time, energy duration, redundancy model, operating modes, efficiency measurement, monitoring interfaces, and acceptance tests.

It should also distinguish between:

  • UPS capacity, measured in kW or MW
  • Battery energy, measured in kWh or MWh
  • Backup duration, measured at a defined load
  • Power quality, including voltage, frequency, harmonics, and ride-through
  • Resilience, including failure behavior and maintenance procedures

The future will include fewer one-size-fits-all power rooms. Some facilities will retain large centralized UPS plants because their loads, risk profile, and regulatory requirements favor proven isolation. Others will adopt MV UPS, BESS, grid-forming inverters, 800 V DC distribution, or rack-level buffering for high-density AI environments.

The winning architecture will not be the one with the newest label. It will be the one that assigns each power-protection function to the technology best suited to perform it, and then verifies that the layers operate together.

Three-pillar power protection planning method showing hardware, software, and lifecycle services

Frequently Asked Questions

What is the role of a UPS in a modern data center?

A UPS provides instantaneous power protection, power-quality conditioning, battery-backed ride-through, and controlled isolation for critical loads. In an online double-conversion design, the protected load remains on the inverter, allowing practical 0-millisecond transfer during a utility failure.

How does BESS differ from a conventional UPS?

BESS usually provides greater energy capacity and longer-duration support, while a conventional UPS is optimized for immediate power conditioning and predictable no-break protection. A BESS can perform UPS-like duties only when the complete system is engineered and tested for transfer, fault behavior, islanding, controls, and applicable reliability requirements.

What should a facility choose for a 2027 power refresh?

A facility should begin with a load and risk assessment rather than choosing between “UPS” and “BESS.” Evaluate instantaneous protection, energy storage, generation, cooling dependencies, rack density, Tier III or Tier IV objectives, and future MW growth as one coordinated architecture.

Plan the Next Power Layer With Real-Time Solutions

The UPS is not disappearing. Its job is being divided among more intelligent, more distributed, and more grid-interactive systems.

For a facility planning a refresh, the priority is to determine which functions must remain centralized, which can move closer to the rack, and where BESS or medium-voltage systems can add capacity without weakening protection. Ace Real Time Solutions designs, installs, monitors, and supports power protection systems for data centers and businesses.

Visit acerts.com to request a power audit, download technical information, or start a solution design for your next UPS, BESS, rack-power, cooling, or monitoring project.
