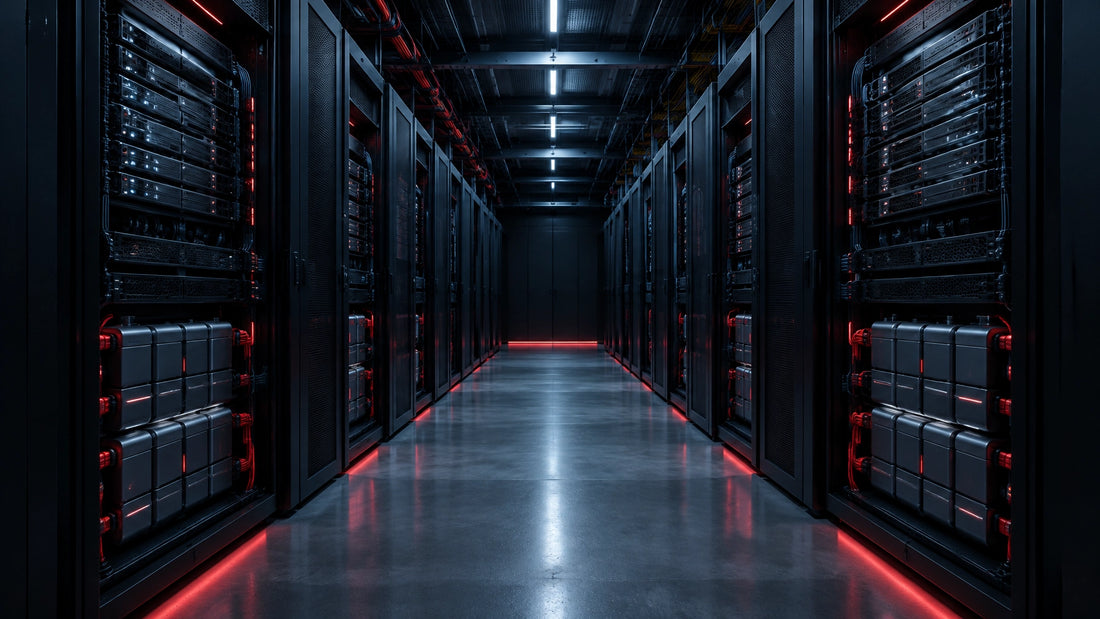

AI data center aisle with integrated rack-level battery energy storage units

Solid-State Comes for the Rack: What QuantumScape's QS PowerBlock Means for In-Rack Energy Storage

On October 8, 2026, QuantumScape announced QS PowerBlock, a solid-state lithium-metal battery reference design aimed at in-rack energy storage for AI data centers. The announcement is significant because it applies solid-state technology to the rack, not only to electric vehicles or laboratory prototypes. QuantumScape says the design is intended for multiple module, shelf, and rack formats, including emerging 800V DC architectures supporting next-generation AI systems.

The timing reflects a larger infrastructure problem. AI rack power has moved from roughly 10–20 kW toward 50 kW and beyond, with future systems targeting hundreds of kilowatts and, in some architectures, approximately 1 MW per rack. At the same time, power protection supply chains remain constrained by long lead times for transformers, switchgear, UPS systems, and battery cabinets. When an existing battery room is full, adding another centralized UPS string may require construction, cooling upgrades, reinforced floors, and a longer deployment schedule than the compute project can tolerate.

Why Now: Thermal Management and Redundancy Are Moving Toward the Rack

The traditional data center model places energy storage in a centralized UPS room. Large battery cabinets support an entire electrical bus, while power travels through switchgear, distribution panels, PDUs, and server power supplies before reaching the rack. This approach remains mature and appropriate for many Tier III and Tier IV facilities, especially where standardized AC distribution and long-established maintenance procedures are priorities.

AI changes the power profile. A 50 kW rack can experience rapid load changes as GPUs ramp together. A future 400 kW or 1 MW rack makes distribution losses, transient response, cable mass, and fault isolation much more difficult. A centralized UPS can still provide the required ride-through, but the protected power path may involve several conversion stages and a large shared failure domain.

Rack-level energy storage reduces that blast radius. Instead of one battery system supporting an entire hall, each rack, or small group of racks, can have dedicated stored energy connected near the protected DC bus. The local battery can provide short-duration ride-through while generators start, workloads throttle, or software performs a controlled checkpoint.

This architecture also changes Thermal Management. Centralized batteries are easier to isolate and cool, but they consume valuable facility space. In-rack batteries put heat-producing equipment closer to high-density compute and cooling constraints. Solid-state technology may reduce fire propagation and thermal runaway risk, but it does not eliminate heat, electrical fault energy, or the need for engineered airflow.

Compact rack-level battery module integrated with a high-density AI server rack

What Solid-State Actually Changes

Conventional lithium-ion batteries use a liquid or gel electrolyte. Solid-state cells replace that electrolyte with a solid material and, in QuantumScape’s design, use a lithium-metal anode architecture. The practical implications at the rack level are fourfold.

1. More energy in less rack space

Higher energy density can allow a rack-level battery to provide more usable watt-hours without occupying an entire additional cabinet. That matters when a facility needs 2–5 minutes of ride-through at 50 kW or more, but has no room for another centralized battery enclosure.

The exact benefit depends on the complete system, not just cell-level energy density. Packaging, busbars, contactors, battery-management electronics, cooling, service clearances, and fire protection all determine the installed footprint. A smaller cell does not automatically create a smaller code-compliant system.

2. A potentially safer failure mode

QuantumScape reports that its cells demonstrated thermal stability above 300°C in testing, compared with approximately 180°C for a conventional reference cell in the company’s cited comparison. Those are company-reported test results, not proof of performance in a deployed data center.

For facility managers, the relevant question is not whether a cell is labeled “solid-state.” It is how the complete battery system behaves during overcharge, crush, external heating, internal short circuit, propagation, and mechanical damage. A safer cell can reduce the probability or severity of thermal events, but enclosure design, isolation, monitoring, and installation remain essential.

3. Wider temperature tolerance

AI environments are difficult places to install additional heat-producing equipment. A battery that tolerates a wider operating temperature range can provide more flexibility in rack design and cooling strategy. It may also reduce dependence on tightly controlled battery-room conditions.

That does not mean a rack-level battery can be installed in an overheated aisle. Temperature affects power capability, aging, warranty compliance, and safety. Cell temperature, module temperature, rack inlet temperature, and local airflow must all be monitored.

4. New trade-offs

Solid-state batteries are not yet a no-risk replacement for VRLA or established lithium-ion systems. Cost is likely to remain high while manufacturing scales. Production yield, supply availability, service procedures, field-replaceable modules, and long-term cycle-life data must be demonstrated under real data center duty cycles.

Cycle-life claims based on laboratory testing may not match operation in a rack that repeatedly handles fast load swings, elevated temperatures, shallow cycling, and frequent high-power events. The difference between a promising cell and a dependable infrastructure product is years of validation, warranty support, and installed experience.

Rack-Level Storage Versus a Centralized UPS Room

A centralized UPS room concentrates energy storage and makes maintenance, fire protection, and environmental controls easier to manage. It also supports established redundancy schemes. A facility targeting Tier III generally needs concurrently maintainable power infrastructure; Tier IV requires fault-tolerant systems with independent distribution paths. Centralized UPS designs can satisfy those objectives when properly engineered.

Rack-level storage provides different benefits:

  • Reduced failure domain: A battery fault can be isolated to one rack or pod.
  • Shorter power path: Energy reaches the load through fewer distribution stages.
  • Pay-as-you-grow deployment: Battery capacity can be added with each AI rack.
  • Less dependence on a full battery room: Existing rooms do not need immediate expansion.
  • Potentially improved DC efficiency: Batteries can connect to an 800V DC bus through a bidirectional DC-DC converter rather than completing an AC-to-DC-to-AC-to-DC path.

The trade-off is operational complexity. Instead of monitoring a few large battery cabinets, the facility may manage hundreds of rack-level systems. Cell-level telemetry, remote alarms, firmware control, replacement procedures, and spare-parts logistics become non-negotiable.

A modern online UPS may achieve 96–98% efficiency in double-conversion operation and more than 99% in certain economy modes, depending on load and manufacturer. Those figures describe the UPS, not the complete facility path. Rack-level DC storage can improve end-to-end efficiency by removing conversion stages, but only if the rectifiers, DC bus, converters, protection devices, and controls are designed as a coordinated system.

Real-World Retrofit: When the Battery Room Is Full

Consider a regional cloud facility with a 2 MW electrical room and a full battery room designed around existing centralized UPS cabinets. The operator has space and utility capacity for six new 50 kW AI racks, but adding another centralized battery cabinet would require a room expansion, new cooling, and revised fire-protection engineering.

A rack-level pilot could place one protected battery and DC power shelf at each AI rack. The existing UPS would continue serving conventional IT loads, while the new rack cluster would use local energy storage for short-duration ride-through. The facility would retain centralized backup for legacy systems and test distributed storage without committing the entire site to a first-generation chemistry.

That approach does not avoid engineering review. It requires coordination with the authority having jurisdiction, the electrical engineer, fire-protection designer, and insurance provider. It does, however, create a practical path to deploy additional compute where the centralized battery room is already at capacity.

Data center retrofit showing centralized UPS capacity constraints and rack-level storage for new AI compute

The Solid-State Evaluation Roadmap

Facility managers should treat QS PowerBlock and similar products as emerging infrastructure, not drop-in battery replacements. Before specifying solid-state storage, take these five steps:

  1. Require complete system test data.
    Request UL 9540 system certification or listing status, applicable UL 9540A test reports, cell and module abuse results, propagation data, gas-generation analysis, and installation limits. UL 9540A results can inform fire and explosion-mitigation design, but they do not automatically remove NFPA 855 requirements or guarantee reduced separation distances.

  2. Ask for cell-level telemetry.
    Specify monitoring for cell voltage, module voltage, temperature, state of charge, state of health, impedance or resistance indicators, isolation faults, contactor status, and event history. Rack-level alarms alone are insufficient for a distributed battery fleet.

  3. Review the warranty under real duty cycles.
    Confirm permitted operating temperature, discharge power, cycle count, depth of discharge, calendar life, capacity-retention guarantee, replacement terms, and response time for failed modules. Separate laboratory cycle-life claims from contractual field performance.

  4. Validate the 800V DC interface.
    Require documented operating voltage range, fault-clearing time, precharge behavior, insulation monitoring, DC-rated disconnects, arc-flash analysis, and compatibility with the power shelf and rack converters. At 800V DC, arcing and fault interruption require purpose-designed equipment.

  5. Pilot before fleet-wide deployment.
    Install a limited number of racks and operate them through normal workloads, generator starts, utility disturbances, thermal excursions, maintenance bypasses, and controlled battery events. Measure efficiency, availability, thermal behavior, alarm quality, service time, and workload impact before expanding.

Also require a realistic availability date. A product announced in 2026 may be a reference design, demonstration platform, or customer-evaluation system rather than a catalog-ready battery. Procurement plans should distinguish announced capability from production hardware with validated lead times.

The Bottom Line

Solid-state storage could make rack-level energy protection more practical for AI facilities by combining higher energy density, improved thermal stability, and compatibility with high-voltage DC architectures. It may be especially valuable in retrofit facilities where centralized battery rooms are full but electrical and cooling capacity remain available near the compute load.

The technology is promising, but the correct decision is not based on chemistry alone. The system must satisfy power quality, redundancy, thermal management, fire protection, monitoring, serviceability, and warranty requirements. A controlled pilot is a stronger path than a fleet-wide bet on any first-generation battery platform.

At Ace Real Time Solutions, we design Real-Time Solutions for UPS systems, batteries, distribution, monitoring, and critical IT environments. Visit our UPS systems resource center or review our guidance on AI-ready rack-level power architecture. Contact us through acerts.com to request a power audit, technical specification review, or solution design for a new AI deployment or constrained retrofit.

FAQ

What is solid-state in-rack energy storage?

Solid-state in-rack energy storage uses batteries with a solid electrolyte and places the energy-storage system inside or immediately adjacent to the IT rack. The design can reduce footprint, limit the failure domain, and connect directly to rack-level DC power architecture. Actual safety and performance depend on the complete certified system, not the cell chemistry alone.

How does solid-state storage support 800V DC AI racks?

A solid-state battery system can connect to an 800V DC distribution bus through a controlled bidirectional DC-DC converter. The converter manages charging, discharge, voltage variation, current sharing, and fault isolation while allowing stored energy to support high-density racks during short power disturbances.

What should a data center require before deploying a solid-state battery?

A data center should require UL 9540 system certification or listing information, UL 9540A testing data, cell-level telemetry, DC-rated protection equipment, detailed thermal and fault-response documentation, warranty terms tied to actual operating conditions, a confirmed production availability date, and a pilot deployment before fleet-wide adoption.
