Silicon Carbide and the Doorless UPS: Why Socomec's DELPHYS XL+ Is a Blueprint for the PTU Era

The UPS Room Is Becoming the Constraint

Data center power demand is rising faster than many electrical rooms were designed to accommodate. Grid interconnection delays, transformer shortages, switchgear lead times, and constrained construction schedules are forcing operators to add capacity inside existing buildings rather than wait for entirely new power blocks. In this environment, the UPS is no longer evaluated only by its kW rating and battery runtime. Its footprint, service clearances, heat output, and deployment model can determine whether a project fits at all.

Power protection supply chains are also changing. Factory-assembled modules and prefabricated power train units (PTUs) are becoming more attractive because they shift engineering, wiring, testing, and commissioning work away from the site. That approach can shorten deployment schedules, but it places new demands on the equipment inside the power block. A UPS must be compact, serviceable, modular, thermally efficient, and compatible with factory integration.

Socomec’s newly launched DELPHYS XL+ illustrates this direction. The high-power UPS is designed for conventional, modular, and prefabricated data center projects, with a reported capacity range of 500 to 1,250 kW, 125 kW hot-swappable power modules, up to 98% efficiency in online double-conversion mode, and a doorless configuration intended to reduce operational space requirements.

Why Now: Thermal Management and Redundancy Are Converging

The traditional UPS room assumed that floor space and cooling capacity could be expanded when necessary. That assumption is failing in retrofit projects. High-density AI and accelerated-computing loads increase the demand on every upstream system, while redundant UPS architectures may operate at partial load for much of their lives. A lightly loaded UPS can still produce meaningful losses, and those losses become heat that the cooling plant must remove.

This is where silicon carbide (SiC) power semiconductors become important. Compared with conventional silicon IGBTs, SiC MOSFETs can switch at higher frequencies with lower switching losses. In a UPS rectifier and inverter, that can produce several system-level benefits:

• Lower switching losses: SiC avoids much of the turn-off tail-current behavior associated with silicon IGBTs.
• Higher switching frequency: Faster switching can improve waveform control and reduce the size of filters.
• Smaller magnetics: Higher-frequency operation can allow smaller inductors, transformers, and other magnetic components.
• Lower heat output: Less electrical loss means less heat for room cooling systems to remove.
• Higher power density: More usable kW can fit into a constrained electrical room.

The precise result depends on topology, load level, switching frequency, voltage, and thermal design. Research and manufacturer engineering data commonly show SiC-based converter stages outperforming comparable silicon designs at medium and high switching frequencies. The advantage is especially relevant when a UPS spends significant time at 20% to 40% load, as often occurs in N+1 or 2N installations.

DELPHYS XL+ applies that semiconductor strategy to a high-power UPS platform. Socomec reports up to 98% system-level efficiency in online double-conversion mode and up to 12% lower cooling requirements than the market average. These are not merely efficiency numbers for a product brochure. They affect electrical capacity, cooling design, operating cost, and the amount of heat released inside a prefabricated PTU.

Redundancy remains equally important. A compact UPS cannot compromise maintainability or fault isolation. The DELPHYS XL+ uses 125 kW hot-swappable power modules, with configurations described as supporting N and N+1 architectures. Up to four units can reportedly be paralleled. For a Tier III facility, the design must support concurrent maintenance without taking critical loads offline. For Tier IV objectives, the entire power path, not only the UPS, must tolerate a single failure without affecting the critical load.

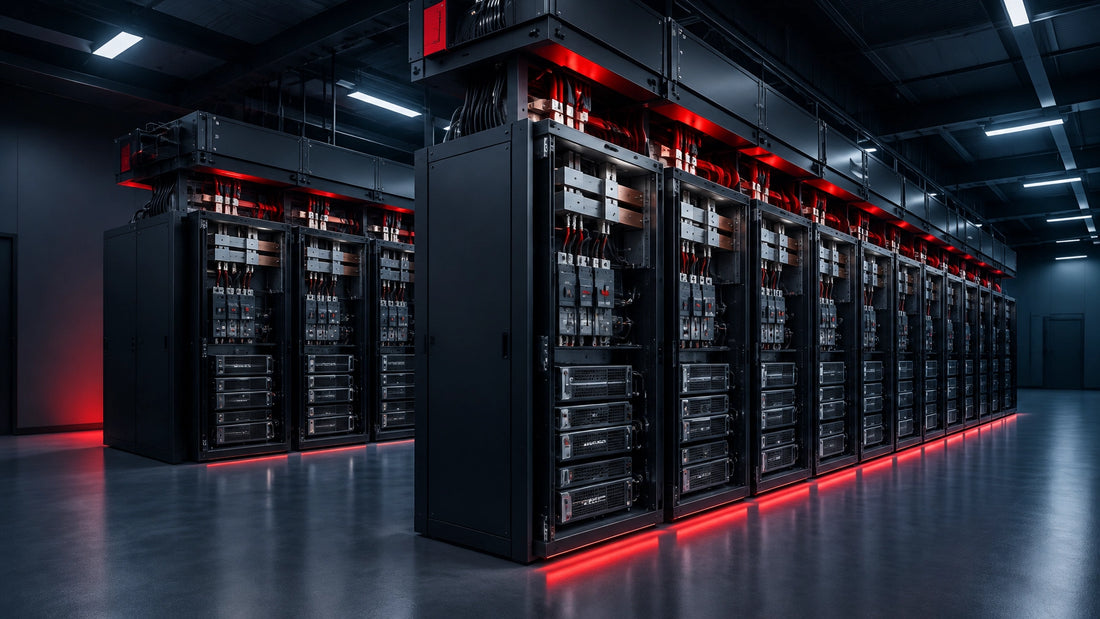

A doorless design addresses another form of operational risk: the clearance required to open cabinet doors and position technicians in front of equipment. Socomec states that the doorless configuration can reduce the operational footprint by up to 30% compared with mainstream UPS systems. The manufacturer also describes access to serviceable components without top-mounted fans requiring overhead access.

That distinction matters in a retrofit. A cabinet that occupies fewer square feet but requires large service zones may not save space in practice. Operational footprint includes the cabinet, working clearances, cable access, battery access, ventilation, and the space needed to replace modules safely.

The Efficiency Math: Why One Percentage Point Matters

UPS efficiency should be modeled at the actual operating point, not simply at the nameplate rating. The basic loss calculation is:

UPS loss = protected load × (1 ÷ efficiency − 1)

Consider 1 MW of protected IT load operating continuously. At 95% efficiency, UPS losses are approximately 52.6 kW. At 96% efficiency, losses fall to approximately 41.7 kW. That one-percentage-point improvement removes about 11 kW of heat per MW of protected load.

If the cooling system has a marginal coefficient of performance (COP) of 4, the cooling electricity associated with that heat is approximately 2.7 kW. The combined reduction is therefore about 13.7 kW per MW, or approximately 120,000 kWh annually at continuous operation. At an electricity rate of $0.10 per kWh, that represents roughly $12,000 per MW-year, before considering demand charges.

At 5 MW, the same assumptions produce approximately:

• 54.8 kW less UPS heat
• 13.7 kW less cooling power per MW, scaled across the load
• Approximately 600,000 kWh of annual energy reduction
• Approximately $60,000 in annual electricity savings at $0.10 per kWh

A move from 96% to 98% can produce a larger benefit than a one-point improvement, but the calculation must use the manufacturer’s efficiency curve and the facility’s real load profile. In a 2N design, each UPS may carry only a portion of the available capacity, so proportional losses and low-load efficiency become critical.

These savings also create capacity. Lower UPS losses can reduce the required cooling plant capacity and free electrical headroom for additional IT load. In a room where every square foot and every available ampere is already allocated, efficiency and footprint improvements can be more valuable than simply installing a larger UPS.

What “PTU-Ready” Means in Practice

A PTU is a factory-engineered power block that may combine UPS systems, batteries, switchgear, transformers, distribution, cooling, fire protection, and monitoring in a repeatable enclosure or skid. The goal is to deliver a tested, transportable unit rather than build every power room from individual components at the data center site.

A PTU-ready UPS must therefore support more than electrical conversion. It should provide:

• Compact dimensions and predictable service clearances
• Modular power conversion that can be installed and replaced efficiently
• Battery compatibility, including VRLA or lithium-ion configurations where approved
• Top-entry or flexible cable connection options
• Compatibility with busbars and upstream switchgear
• Factory testing and repeatable integration
• Monitoring and controls that connect to the broader facility platform

The DELPHYS XL+ is positioned for this model. Its doorless configuration can reduce clearance requirements within the PTU, while hot-swappable 125 kW modules support serviceability and staged capacity. The reported 500–1,250 kW range also maps well to modular power blocks that can be repeated as a facility grows.

PTU-ready does not mean plug-and-play without engineering review. Transport dimensions, fault-current ratings, battery safety, fire protection, environmental conditions, protection coordination, bypass arrangements, and local code compliance still require detailed design.

The Retrofit Evaluation Roadmap

For a facility adding capacity inside an existing electrical room, begin with these five steps.

1. Establish the usable footprint

Measure the complete operational area, not just the empty floor space. Record cabinet dimensions, front and rear clearances, battery access, overhead obstructions, egress paths, cable routes, and equipment replacement paths. Compare the existing arrangement with the proposed UPS footprint in square feet.

A doorless UPS can be valuable when front-door swing space is the constraint, but local electrical and safety requirements still govern minimum working clearances.

2. Build a real thermal-management model

Document current UPS losses, room temperature, cooling capacity, airflow, and seasonal operating conditions. Calculate the heat produced at the actual load, including N, N+1, and bypass scenarios.

Do not use the 98% maximum efficiency figure as a universal operating assumption. Request efficiency and loss curves at the intended voltage, load, battery condition, and operating mode.

3. Confirm switchgear and distribution compatibility

Review incoming voltage, bypass ratings, short-circuit withstand, breaker coordination, grounding, busbar interfaces, harmonic performance, and cable-entry direction. A UPS may fit physically while remaining incompatible with existing switchgear or protection settings.

The review should also confirm whether the system can support the intended kW rating, future parallel units, and the facility’s Tier III or Tier IV redundancy strategy.

4. Define the deployment and phasing plan

Determine whether the new UPS can be installed beside the existing system, whether temporary generation or bypass equipment is required, and how battery work will be sequenced. Plan factory acceptance testing before shipment and site acceptance testing after connection.

For critical facilities, the project plan should define exactly how the load remains protected during cutover. “No downtime” must be an engineered operating procedure, not an assumption.

5. Integrate monitoring and lifecycle support

Connect UPS alarms, module status, battery health, bypass state, temperature, and load data to the facility’s monitoring platform. Remote monitoring can identify degradation before it becomes a service event.

Also specify spare modules, battery replacement procedures, response times, maintenance windows, and technician access. A smaller UPS room is only an improvement if it remains maintainable throughout its service life.

The Broader Lesson for Real-Time Solutions

The DELPHYS XL+ is significant because it treats the UPS as part of a complete deployment architecture. SiC technology addresses losses and heat. Modular power blocks address capacity and serviceability. A doorless cabinet addresses floor space and access. PTU compatibility addresses construction schedules and repeatability.

For facility managers, the lesson is not to select a UPS based on one headline specification. Evaluate the complete power path: usable footprint, real-load efficiency, thermal management, redundancy, service access, switchgear compatibility, monitoring, and phasing.

Ace Real Time Solutions helps businesses and data center operators evaluate those tradeoffs through power audits, infrastructure planning, professional installation, and ongoing support. Visit acerts.com, review our power protection services, or contact our team to request a power audit or solution design.

FAQ

What is a PTU-ready UPS?

A PTU-ready UPS is designed for integration into a prefabricated power train unit. It typically combines a compact footprint, modular power conversion, flexible battery integration, service access compatible with an enclosure, monitoring interfaces, and factory-level testing requirements.

How does silicon carbide improve UPS performance?

Silicon carbide MOSFETs can switch faster and with lower switching losses than traditional silicon IGBTs in suitable UPS topologies. This can reduce heat, enable smaller magnetic components, improve efficiency, and increase power density. The actual benefit depends on load, topology, switching frequency, and thermal design.

What should a facility evaluate before retrofitting an existing UPS room?

Evaluate usable floor space, maintenance clearances, cooling capacity, existing switchgear, cable routes, bypass arrangements, battery chemistry, redundancy requirements, monitoring, and the cutover sequence. Confirm efficiency at the intended operating load rather than relying only on the maximum published rating.
