Power Quality 101: Sags, Swells, and Transients : What's Actually Damaging Your Equipment

Most power problems do not begin with a complete outage. A server may reboot after a fraction-of-a-second voltage sag. A power supply may fail prematurely after repeated voltage swells. A switching transient may damage sensitive electronics without interrupting the lights or causing an obvious alarm.

These events are power-quality disturbances: deviations from the expected voltage, frequency, or waveform supplied to electrical equipment. They can occur at a utility, inside a commercial building, or within a home when large loads start and stop. For businesses, the consequences may include lost data, interrupted processes, equipment damage, and unplanned downtime. For homeowners, the same disturbances can shorten the life of computers, networking equipment, televisions, appliances, and home-office systems.

The right protection strategy begins by understanding what is happening. Surge protectors, voltage regulators, and uninterruptible power supplies (UPS) are not interchangeable. Each is designed to address different conditions.

Why Power Quality Matters

Modern electronics are more capable: and often more sensitive: than the equipment they replaced. Servers, network switches, storage systems, medical devices, industrial controls, and home-office workstations rely on tightly controlled power supplies. These power supplies convert incoming AC power into the low-voltage DC power used by processors, memory, drives, and control boards.

When the incoming waveform moves outside the equipment’s tolerance, the result can be immediate failure or cumulative stress.

Power-quality issues also create operational latency. A system may not fail completely, but it may run through repeated resets, communication errors, retries, or degraded performance. In a data center, even a short disruption can trigger failover activity across redundant systems. In a small business, it may leave point-of-sale terminals, routers, workstations, or phone systems offline.

According to common IEEE 1159 classifications, a voltage sag is a reduction in RMS voltage to approximately 10%–90% of nominal voltage for between one-half cycle and one minute. A swell is an increase to approximately 110%–180% of nominal voltage for a similar duration. Transients are much faster events, typically lasting microseconds to milliseconds, but they can reach thousands of volts.

Understanding the difference is essential to choosing the right protection.

Voltage Sags: The Short Drop That Causes Big Interruptions

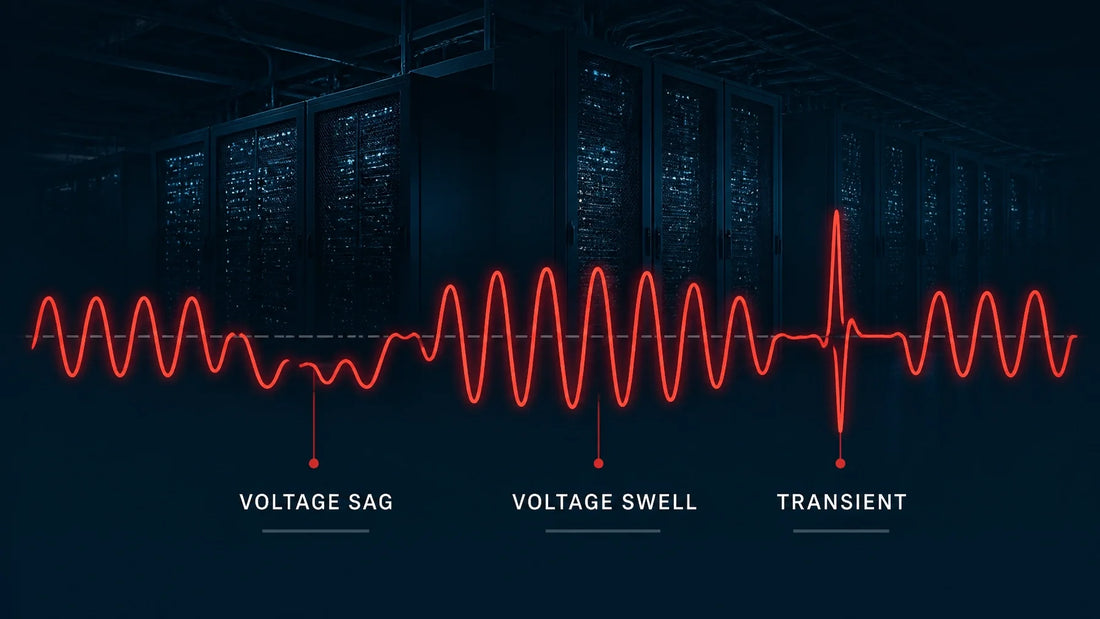

A voltage sag: also called a voltage dip: is a temporary reduction in voltage. On a 120-volt circuit, a sag might reduce the supply to 100 volts, 80 volts, or even lower for a short period.

What causes voltage sags?

Common causes include:

• Utility faults caused by storms, animals, vehicles, or damaged infrastructure
• Large motors starting in a facility or nearby building
• Transformer energization
• Heavy equipment switching on
• Long or overloaded branch circuits
• Faults elsewhere on a distribution system being cleared

The basic mechanism is straightforward: a large current change flows through the impedance of the electrical system, causing the available voltage to drop.

How do sags damage or disrupt equipment?

A brief sag may cause a computer power supply to drop out, a network switch to reboot, or a programmable logic controller (PLC) to reset. Contactors and relays may release when the voltage falls below their operating threshold. Motors can stall or draw additional current, increasing stress on the electrical system.

In a business environment, the most expensive consequence may not be a burned component. It may be a production interruption, corrupted data, an interrupted transaction, or the time required to restart dependent systems.

A sag can also be a warning sign. If it occurs frequently, the underlying issue may involve an overloaded transformer, inadequate distribution capacity, poor connections, or a recurring utility problem.

Voltage Swells: The Dangerous Rise in RMS Voltage

A voltage swell is a temporary increase in RMS voltage. On a nominal 120-volt circuit, the voltage may rise above the normal operating range for several cycles or longer.

What causes voltage swells?

Typical causes include:

• Sudden disconnection of a large load
• Single-line-to-ground faults on three-phase systems
• Incorrect transformer tap settings
• Poor or loose neutral connections
• Improperly balanced building loads
• Utility switching events

A loose neutral is especially important in commercial and residential systems. It can create uneven voltage between circuits, causing one circuit to experience an overvoltage while another experiences an undervoltage.

How do swells damage equipment?

Power supplies and electronic components are designed to operate within a defined input range. A swell forces them to dissipate more energy and can increase internal heat. Repeated exposure may accelerate the aging of capacitors, insulation, switching devices, and circuit boards.

Severe swells can cause immediate failure. More moderate events may not produce a visible problem, but they can reduce the service life of equipment over time. This is one reason a device may appear to “randomly” fail even though no major outage has occurred.

Voltage regulators and properly selected UPS systems can help manage sustained or recurring high-voltage conditions. However, a regulator is not a substitute for correcting a dangerous wiring or neutral problem. Electrical faults should be investigated by a qualified professional.

Transients: Fast, High-Energy Voltage Spikes

Transients are short-duration voltage events that occur much faster than sags or swells. They may be impulsive, such as a sharp spike from lightning, or oscillatory, such as a rapidly changing waveform caused by switching.

What causes transients?

Common sources include:

• Lightning strikes on or near utility lines
• Switching inductive loads such as motors, compressors, and transformers
• Capacitor-bank switching
• Generator switching
• Arcing contacts and faulty contactors
• Utility restoration events
• Electrical noise created by nearby equipment

A transient may last only microseconds, which means it can pass through a basic circuit before a conventional breaker has time to respond.

How do transients affect electronics?

A high-energy transient can puncture insulation, damage semiconductor junctions, degrade circuit traces, or destroy a power supply. Lower-energy events may create cumulative stress. Sensitive equipment may experience unexplained resets, communication errors, or premature component failure.

Transients can also travel through communication pathways. A server may be protected on its AC input but remain vulnerable through Ethernet, telephone, coaxial, or other connected cables if the entire system is not properly designed.

How Protection Equipment Addresses Each Problem

Surge protective devices: designed for transients

Surge protective devices (SPDs), commonly called surge protectors, are designed to limit transient overvoltages by diverting excess energy away from connected equipment. They are most effective when installed as part of a coordinated protection system.

A commercial facility may use:

1. Service-entrance protection for incoming utility surges
2. Distribution-panel protection for major branch circuits
3. Point-of-use protection for sensitive equipment
4. Data and communications protection where required

A power strip labeled “surge protector” is not automatically equivalent to a professionally selected SPD. Important specifications include clamping voltage, nominal discharge current, maximum surge current, response characteristics, grounding requirements, and compliance with applicable standards.

SPDs are essential for transient protection, but they do not provide battery backup and generally do not correct voltage sags or swells.

Voltage regulators: correcting moderate fluctuations

Voltage regulators and automatic voltage conditioners correct sustained or recurring changes in RMS voltage. Depending on the design, they may use transformer taps, electronic switching, or other regulation methods to boost low voltage and trim high voltage.

They are useful when a facility experiences:

• Frequent brownouts
• Long-term undervoltage or overvoltage
• Voltage variation caused by heavily loaded feeders
• Sensitive equipment with narrow input-voltage tolerances

A regulator can protect equipment without using battery power for every fluctuation. That may help preserve UPS battery capacity for actual outages.

UPS systems: ride-through, backup, and conditioning

A UPS provides energy from batteries or another stored-energy system when utility power is interrupted. Depending on its topology, it may also provide voltage regulation, filtering, and waveform conditioning.

• Standby UPS: Transfers to battery when utility power fails. It is commonly used for less demanding loads but may provide limited power conditioning.
• Line-interactive UPS: Uses automatic voltage regulation to correct moderate sags and swells without always switching to battery. The APC Smart-UPS 3000VA with SmartConnect, for example, provides line-interactive operation, 2,700 watts of output, automatic voltage regulation, and up to 98% efficiency in Green Mode.
• Online double-conversion UPS: Continuously converts AC to DC and back to AC. This topology provides the strongest separation from incoming voltage disturbances and is often selected for critical servers, network cores, medical equipment, and industrial controls.

UPS capacity must be evaluated in both volt-amperes (VA) and watts. Runtime depends on the actual load, battery condition, temperature, and whether additional battery modules are installed. A 3,000 VA UPS rated for 2,700 watts is not automatically appropriate for every 3,000 VA load.

For planning guidance, see Ace Real Time Solutions’ power protection component guide.

The Power Quality Roadmap

Facility managers and homeowners can take practical steps today:

1. Document the symptoms. Record when equipment resets, displays errors, loses connectivity, or fails. Note whether the event occurs during storms, after large equipment starts, or when utility power returns.

2. Measure before buying. Use a qualified electrician or power-quality specialist to monitor voltage, current, frequency, and waveform behavior. A power-quality analyzer can correlate disturbances with equipment events.

3. Separate critical and noncritical loads. Place servers, storage, network infrastructure, control systems, and communications equipment on protected circuits. Avoid placing high-inrush loads on the same circuit as sensitive electronics.

4. Match the technology to the disturbance. Use SPDs for transients, regulators for moderate RMS fluctuations, and UPS systems for outages, deep sags, and continuity requirements. Critical systems may need more than one layer.

5. Plan for monitoring and maintenance. Network-enabled UPS systems can report battery health, load, temperature, input conditions, and power events. Schedule battery testing, inspect connections, verify grounding, and review alarms before an incident occurs.

Build a Real-Time Power Protection Strategy

Power quality is not only an electrical engineering concern. It is an uptime, cybersecurity, safety, and business-continuity concern. A voltage sag that resets a switch can interrupt access controls. A transient that damages a storage system can affect data availability. A swell that shortens the life of power supplies can increase maintenance costs across an entire facility.

The most effective solution combines measurement, correct equipment selection, professional installation, and ongoing support. Ace Real Time Solutions designs and installs customized power protection solutions for homes, businesses, IT environments, government facilities, healthcare organizations, and educational institutions.

Visit the Ace Real Time Solutions services page to learn about UPS systems, surge protection, voltage regulation, installation, and support. You can also review the APC Smart-UPS 3000VA product page for a representative line-interactive UPS configuration.

For a technical spec sheet, power audit, or solution design, visit acerts.com or contact Ace Real Time Solutions.

Frequently Asked Questions

What is the difference between a voltage sag, a voltage swell, and a transient?

A voltage sag is a temporary reduction in RMS voltage, typically to 10%–90% of nominal voltage. A voltage swell is a temporary increase, generally to 110%–180% of nominal voltage. A transient is a much faster voltage disturbance, often lasting microseconds to milliseconds and potentially reaching several thousand volts.

How does a surge protector protect electronic equipment?

A surge protective device detects excessive transient voltage and diverts much of the associated energy away from connected equipment. It is designed primarily for short-duration spikes caused by lightning and electrical switching. It does not provide battery backup or normally correct extended sags and swells.

How does a UPS protect against poor power quality?

A UPS can supply battery power during outages and severe voltage drops. Line-interactive models add automatic voltage regulation for moderate sags and swells, while online double-conversion models continuously recreate the output waveform and provide the strongest isolation from many incoming disturbances. The appropriate choice depends on load sensitivity, capacity, runtime, and continuity requirements.
