How Do I Calculate What UPS Size I Need? Watts, VA, and the Mistake That Undersizes You
Buying a UPS should be straightforward: add up your equipment, choose a unit with a higher rating, and connect everything. In practice, the calculation becomes confusing because UPS systems are rated in volt-amperes (VA) while most people think about computer power in watts (W). The two numbers are related, but they are not interchangeable.
The result is a common sizing mistake. A buyer sees “1500VA” on the box and assumes the UPS can support 1500 watts. It usually cannot. A typical 1500VA UPS may be rated for 900W, 1000W, or another lower output depending on its power factor and design. The correct choice must satisfy both the watt requirement and the VA requirement, with enough headroom to handle normal variation and future equipment.
Why Now: Latency, Redundancy, and Real-World Loads
Power protection is no longer limited to a desktop computer. A home office may include a high-performance workstation, multiple monitors, a router, modem, switch, external storage, VoIP equipment, and smart-home devices. Small businesses may add servers, security systems, point-of-sale equipment, or network storage. Each load affects the UPS calculation.
Latency also matters. When utility power fails, a standby or line-interactive UPS must transfer the load to battery power quickly enough to prevent connected equipment from shutting down. Most modern computers can tolerate a short transfer, but the exact transfer-time specification still matters, especially with sensitive networking equipment or systems using active power-factor-correction power supplies.
Redundancy matters at a smaller scale, too. A single UPS may be the only backup path for your work, internet connection, and data. Correct sizing gives that UPS enough capacity to respond reliably instead of operating continuously at its limit.
Watts vs. VA: The Essential Difference
Watts measure real power: the energy your equipment actually consumes.
VA, or volt-amperes, measure apparent power: the combination of voltage and current that the UPS must deliver. The relationship between watts and VA is power factor:
[ \text{Power Factor} = \frac{\text{Watts}}{\text{VA}} ]
Rearranged:
[ \text{VA} = \frac{\text{Watts}}{\text{Power Factor}} ]
For example, a 600W load with a power factor of 0.8 requires:
[ 600 \div 0.8 = 750\text{ VA} ]
This is why choosing by watts alone can cause trouble. A UPS may have enough apparent-power capacity in VA but not enough watt capacity for your equipment. Choosing by VA alone can create the opposite problem if the UPS has a relatively low watt rating.
Always compare both figures on the UPS specification sheet.
For example:
- A 1500VA / 900W UPS can support up to 900 watts, not 1500 watts.
- An 800VA / 450W UPS may be overloaded by equipment drawing 475 watts, even though the VA number appears close.
- A 2200VA / 1920W unit, such as the APC Smart-UPS 2200VA listed by Ace Real Time Solutions, has substantially more watt capacity, but may also require a dedicated 20-amp receptacle.
The Sizing Roadmap
1. List every device that must remain powered
Start with the equipment you need during an outage, not every device in the room.
For a home office, that may include:
- Desktop computer or workstation
- One or more monitors
- Modem and router
- Network switch
- External hard drives or storage
- VoIP phone
- Security or access-control equipment
- Small peripherals that must remain active
Do not automatically place a laser printer on the battery-backed outlets. Laser printers can draw substantial power when their fuser heats up, producing a startup surge that can overload a small UPS. In most home and small-office installations, connect the printer to a surge-only outlet or a separate surge protector instead.
2. Find the actual wattage of each load
Look for the input rating on the device label, power adapter, or manufacturer’s specifications. If the label provides watts, record that number.

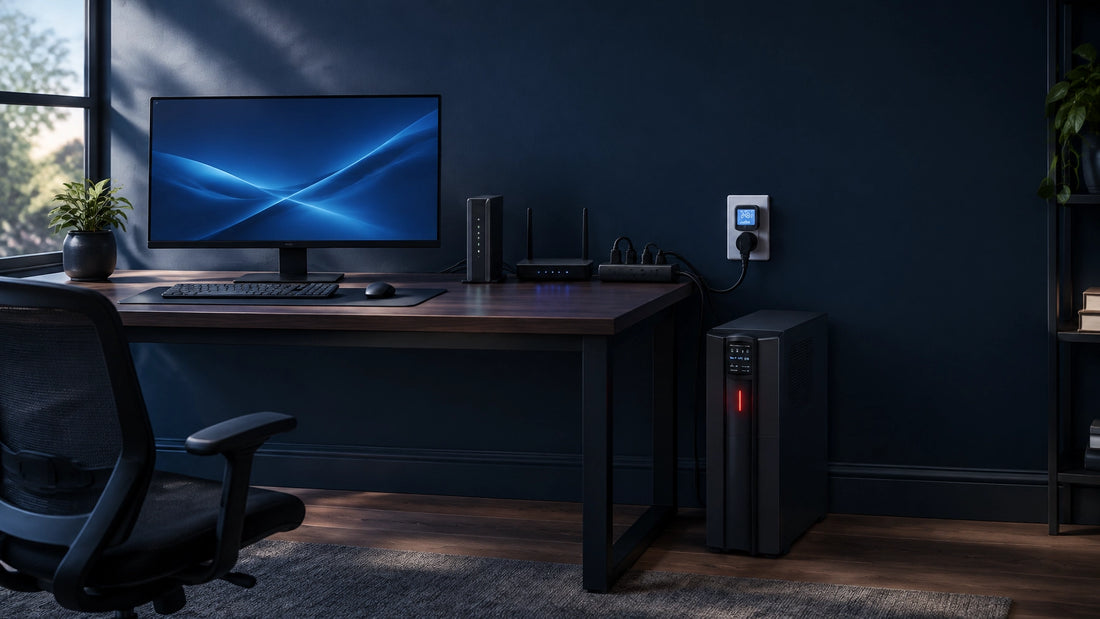

A more useful approach is to measure operating consumption with an inexpensive plug-in wall meter. Measure each device while it is performing normal work, not while it is idle. A workstation rendering video, compiling software, or running a game may draw significantly more power than it does at the desktop.
Nameplate ratings can overstate typical consumption because they often represent a maximum input condition. That makes them useful for conservative planning, but not always representative of the load you will see during normal use.
Record either:
- The measured operating watts, with a reasonable allowance for peaks; or
- The manufacturer’s rated watts when no measurement is available.
Then add the loads:
[ \text{Total Watts} = W_1 + W_2 + W_3 + \ldots ]
If a label only lists amps, use the following relationship:
[ \text{VA} = \text{Volts} \times \text{Amps} ]
On a standard 120V circuit, a device labeled 3A has a maximum apparent load of approximately:
[ 120 \times 3 = 360\text{ VA} ]
Do not automatically treat 360VA as 360W. If the device’s power factor is 0.8, its approximate real power would be:
[ 360 \times 0.8 = 288\text{ W} ]
Also remember that an amp rating may be a maximum input rating rather than normal operating consumption. A wall meter is preferable when accuracy matters.
3. Convert watts to VA using power factor
Once you have the total watts, estimate the power factor of the load.
For a modern computer, monitor, router, and other electronic equipment, a planning value between 0.8 and 0.9 is often reasonable. Use the equipment’s stated power factor when it is available. For a mixed or older load, using 0.8 provides a more conservative estimate.
[ \text{Base VA} = \frac{\text{Total Watts}}{\text{Power Factor}} ]
Do not confuse the power factor of the equipment with the output rating of the UPS. The UPS’s own specification determines how many watts it can deliver at its stated VA capacity.
4. Add 20–25% headroom
Do not select a UPS that operates at 100% of its rating. A practical target is 20–25% capacity above the calculated requirement. This margin accommodates normal fluctuations, brief load changes, battery aging, and future equipment.
You can apply the margin after converting to VA:
[ \text{Target UPS VA} = \text{Base VA} \times 1.20\text{ to }1.25 ]
You should also verify that the UPS watt rating exceeds your total watt load with appropriate room to spare.
A UPS operating near its limit may provide less runtime, generate more heat, and become more vulnerable to overload when a device starts or changes operating mode.
5. Check transfer time, output waveform, and runtime objective
Sizing is not only about capacity. Check the UPS topology and transfer-time specification after establishing the required VA and watts.
- Standby UPS: Usually appropriate for basic electronics, subject to the manufacturer’s compatibility guidance.
- Line-interactive UPS: Common for home offices and small businesses. Automatic voltage regulation can correct moderate overvoltage and undervoltage without using battery power.
- Online double-conversion UPS: Provides continuous inverter output with effectively zero transfer time and is generally selected for more sensitive or critical loads.
Many line-interactive UPS systems specify transfer times in the range of a few milliseconds to approximately 10 milliseconds, but you should verify the exact figure in the datasheet. If your computer uses an active-PFC power supply, a pure sine-wave output may also be the safer choice.
Finally, decide whether you need the UPS to ride through the outage or simply shut down cleanly. At home, the second goal is usually correct. Most consumer UPS systems are designed to provide several minutes of runtime (often enough to save work, close applications, and shut down safely) not to power a workstation for hours.
More capacity can increase runtime, but runtime depends on battery capacity, load, battery age, temperature, and the UPS design. Use the manufacturer’s runtime chart rather than assuming that a larger VA number automatically provides a specific number of minutes.
Worked Example: Sizing a Home Office UPS
Suppose a home office includes:
| Device | Measured or estimated load |
|---|---|
| Desktop workstation | 250W |
| Monitor | 35W |
| Modem and router | 18W |
| External storage | 12W |
| VoIP phone and small accessories | 15W |
| Total | 330W |
Assume a power factor of 0.9 for the modern electronic load:
[ 330 \div 0.9 = 367\text{ VA} ]
Now add 25% headroom:
[ 367 \times 1.25 = 459\text{ VA} ]
The minimum planning target is therefore approximately 460VA, while the UPS watt rating must exceed 330W.
A 500VA / 300W UPS would not be sufficient because its watt rating is below the measured load. A 700VA / 420W unit may meet the minimum calculation, but a 1000VA-class UPS with a watt rating comfortably above 330W may provide more practical room for load changes and future equipment.
If the workstation’s measured draw increases substantially during demanding tasks, size for that higher operating condition, not only for the idle desktop reading.
Common Sizing Mistakes to Avoid
- Treating VA as watts: A 1500VA UPS is not automatically a 1500W UPS.
- Using only the computer’s rating: Include monitors, network equipment, storage, and other required loads.
- Ignoring power factor: Convert watts to VA before selecting the UPS.
- Skipping headroom: A UPS should not run continuously at its maximum rating.
- Including a laser printer without checking surge demand: Keep it off the battery-backed outlets unless the UPS is specifically designed for that load.
- Sizing for hours when you need minutes: For most home offices, clean shutdown is the correct objective.
- Ignoring the circuit: Larger UPS systems may require a dedicated receptacle or a different plug configuration.
For more complex installations, Ace Real Time Solutions can evaluate the equipment, circuit, runtime objective, and operating environment together. Our power protection services include customized UPS selection, installation, maintenance, and support for homes and businesses.
Frequently Asked Questions
What is the difference between UPS watts and VA?
Watts measure the real power consumed by connected equipment. VA measures the apparent power the UPS must supply. Power factor connects the two: VA = watts ÷ power factor. A UPS must have both a sufficient watt rating and a sufficient VA rating.
How does power factor affect UPS sizing?
A lower power factor means a load requires more VA for the same number of watts. For example, a 500W load at a 0.8 power factor requires approximately 625VA before adding headroom. After applying a 20–25% margin, the UPS target would be roughly 750–780VA.
How do I know whether my UPS is large enough for clean shutdown?
Add the wattage of the equipment that must remain active, convert it to VA using a realistic power factor, and add 20–25% headroom. Then confirm that the selected UPS exceeds both the calculated VA and watt requirements. Use the manufacturer’s runtime chart to verify that it provides enough time to save work and shut down safely.
Get a UPS Size Recommendation
The right UPS is determined by your actual load, not a single number printed on a box. Measure the equipment, account for power factor, add headroom, and choose your runtime objective before comparing models.
