GrapheneUPS Is Here: Can Supercapacitors Replace Batteries in AI Data Centers?
AI data centers are forcing operators to rethink power protection. GPU clusters create rapid load changes, higher rack densities, and larger demands on utility interconnections. A conventional UPS still provides essential ride-through protection, but its battery system may be poorly matched to workloads that cycle frequently and require high bursts of power rather than hours of stored energy.

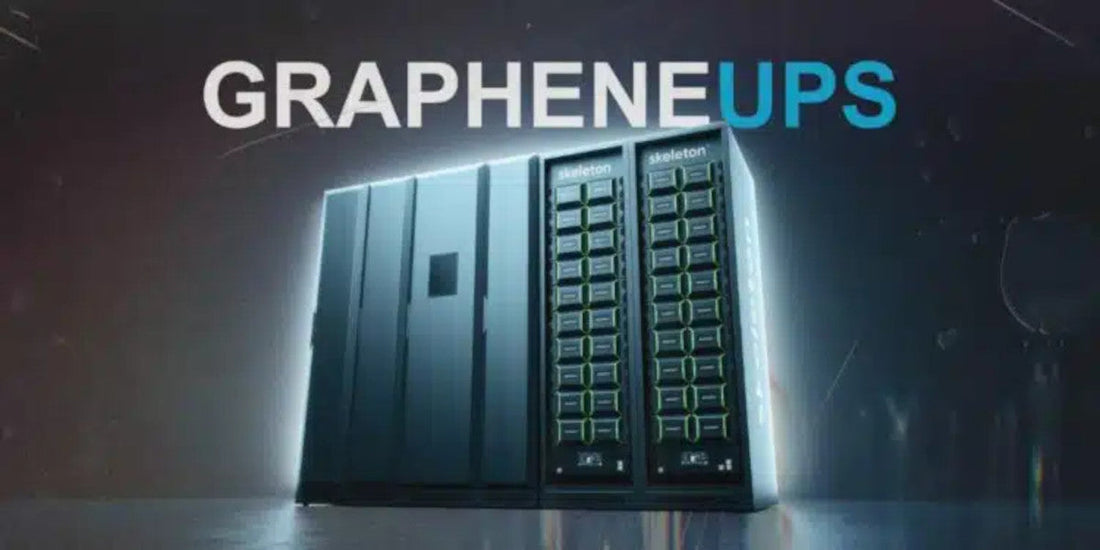

That is the opportunity behind GrapheneUPS, a new high-density UPS platform from Skeleton Technologies that uses graphene-enhanced supercapacitor and SuperBattery technologies. The system is designed for AI and high-performance computing environments, where fast response, grid support, safety, and high cycle life can be as important as backup duration. The practical question for operators is not simply whether supercapacitors can replace batteries. It is where they should replace them, and where they should not.
Why Now: AI Loads Are Exposing the Limits of the Status Quo
Traditional UPS architectures were designed around a relatively stable IT load and a familiar sequence: utility power fails, the UPS carries the load, and a generator starts. AI facilities complicate that model. GPU workloads can change power demand rapidly, creating high-frequency load steps that stress converters, cooling systems, switchgear, and upstream distribution.
This makes Latency, Redundancy, and Thermal Management central design considerations. The UPS must respond without transferring the load or allowing a disturbance to reach sensitive servers. The energy storage system must tolerate repeated cycling without rapid degradation. At the same time, the facility must manage heat and fire-safety requirements as power density rises.
Batteries remain highly effective for storing energy over minutes or hours. However, lead-acid batteries require periodic replacement and are sensitive to temperature and cycling. Lithium-ion batteries offer better life and energy density, but they introduce battery-management, monitoring, and thermal-runaway considerations. In both cases, the operator is using an energy-storage technology for a role that may primarily require instantaneous power.
Supercapacitors approach the problem differently. They store energy electrostatically at the electrode surface, allowing very rapid charging and discharging. The tradeoff is lower energy density. That distinction is critical when designing a resilient data center.
What Is GrapheneUPS?
GrapheneUPS is a double-conversion online UPS platform developed for AI data centers and other high-power computing environments. Its continuous AC-DC-AC topology isolates IT loads from voltage dips, short interruptions, frequency variation, and transients that can occur during grid restoration.
The published GrapheneUPS datasheet lists several specifications relevant to facility planning:
- Three-phase, full four-quadrant SiC-based inverter technology
- Grid-forming control with LCL and common-mode filtering
- AC operating ranges from 380–480 V at 50/60 Hz, depending on configuration
- 800 V or 1,500 V DC nominal storage options
- Rated power configurations from approximately 510 kW to more than 4.4 MW at 415 V
- Configurable backup time from seconds to minutes
- System efficiency of 98% at full load
- Modbus TCP communications
- Liquid-cooled converters
- Support for standards including EN IEC 62040-1, -2, and -3; UL 1741; UL 1778; UL 508; UL 9540; and UL 1973, depending on the selected configuration
These specifications place GrapheneUPS in a different category from a conventional rack UPS. It is a facility-scale power-conversion platform that can be deployed near the IT load, in gray space, or in an outdoor containerized configuration.
The platform also supports voltage ride-through, grid voltage and frequency stability, and peak shaving. For a data center constrained by utility capacity, these functions may be as important as backup power itself.
Can Supercapacitors Replace Batteries?
The answer depends on the required autonomy.
Supercapacitors can replace batteries in the short-duration UPS role
A supercapacitor-based UPS can provide the high-power bridge needed between a utility disturbance and the start of a generator, fuel cell, or larger battery energy-storage system. It can also smooth rapid power changes from AI workloads and support grid services that require frequent charge-discharge cycles.
This is where supercapacitors have a clear technical advantage:
- Very fast response to load changes
- High power density
- Extremely high cycle life compared with lead-acid batteries
- Rapid recharge after a disturbance
- Reduced dependence on electrochemical reactions
- No lithium-ion thermal-runaway risk in the supercapacitor storage configuration described by Skeleton
- Lower maintenance exposure when storage modules are designed for frequent cycling
For an AI facility that needs seconds of ride-through rather than hours of autonomy, replacing a conventional battery UPS with a GrapheneUPS-class system may reduce storage-related maintenance and improve performance under dynamic loads.
Supercapacitors do not replace long-duration energy storage
Supercapacitors cannot economically store the same amount of energy as a battery bank in the same footprint. Their lower energy density makes them unsuitable as a standalone solution for extended utility outages.
If the design requirement is 15 minutes, 30 minutes, or several hours of autonomy, the facility may still need lithium-ion or other battery energy-storage systems, generators, fuel cells, or a combination of technologies. The CAS analysis of supercapacitor technology makes the underlying limitation clear: supercapacitors deliver high power, but batteries remain better suited to long-duration energy storage.
The most practical architecture is therefore hybrid:
- A load-proximate supercapacitor UPS for no-break ride-through and rapid power support
- A longer-duration battery energy-storage system or generator plant for sustained outages
- Intelligent monitoring and controls that coordinate both layers
This approach can strengthen Redundancy without forcing one technology to perform every function.
The GrapheneUPS Roadmap: Five Steps for Facility Managers
1. Separate power protection from energy autonomy
Start by documenting the actual power events your facility must survive. Are you protecting against millisecond-scale voltage sags, short utility interruptions, generator-start delays, or prolonged outages?
Do not specify storage capacity before defining the event profile. A supercapacitor UPS may be ideal for a two-minute bridge, while a battery system or generator is required for a two-hour outage. The correct architecture may use both.
2. Measure dynamic load behavior at the rack and row level
AI facilities should evaluate more than average kilowatts. Capture peak demand, ramp rates, power factor, harmonic behavior, and the frequency of load changes.
Model both current and planned rack densities. A design based on 50 kW racks may behave very differently from a future deployment with 100 kW racks and multi-megawatt rows. UPS, busway, rack PDUs, cable management, cooling, and switchgear must be evaluated as one system.
3. Compare UPS efficiency at the operating load
A published efficiency rating is useful only when it reflects the facility’s operating profile. GrapheneUPS lists 98% system efficiency at full load, with an inverter efficiency estimate of 99.1% under the specified conditions.
Compare that with the efficiency curve of the incumbent UPS at 25%, 50%, 75%, and 100% load. Even a small efficiency improvement can reduce annual energy consumption and cooling demand at megawatt scale. However, efficiency must not be considered separately from bypass performance, overload capacity, maintainability, and redundancy.
4. Design to the required availability target, not the marketing label
GrapheneUPS does not automatically make a facility Tier III or Tier IV. Those classifications depend on the complete infrastructure design, including distribution paths, maintainability, fault tolerance, controls, and operating procedures.
Determine whether the project requires N+1, 2N, or another redundancy strategy. Confirm how individual energy-storage cabinets, converters, bypass equipment, and communication paths can be isolated for maintenance. The GrapheneUPS datasheet describes hot-pluggable CBU800 and BBU800 modules and maintenance bypass options, but the facility-level outcome still depends on implementation.
5. Connect the storage system to monitoring and lifecycle services
A modern UPS should not operate as an isolated appliance. Connect it to the data center’s DCIM, building-management, electrical-management, and incident-response systems.
Use Modbus TCP or an approved integration path to monitor input and output voltage, current, frequency, alarms, temperature, storage health, bypass state, and event history. Ace Real Time Solutions’ three-pillar project planning method reflects this broader model: hardware, software, and lifecycle services must work together.
Our power protection services include solution design, installation, maintenance, UPS support, surge protection, voltage regulation, and emergency assistance. That combination is essential when adopting a newer storage technology.
What This Means for Existing Data Centers
Operators do not need to replace every battery system immediately. A phased strategy is usually more realistic.
Existing APC, CyberPower, Vertiv, and Minuteman Technologies infrastructure can continue serving established loads while new high-density AI zones receive a dedicated power-protection design. For example, a facility may use conventional battery UPS systems for general-purpose IT and deploy a high-power supercapacitor UPS near GPU clusters or a new high-voltage DC distribution system.
Ace Real Time Solutions can help evaluate the transition by reviewing one-line diagrams, UPS loading, battery age, generator-start performance, rack-density plans, and monitoring requirements. Our APC product and services collection includes UPS and IT infrastructure options for facilities that need dependable, serviceable protection today.
The Bottom Line
GrapheneUPS is not the end of battery backup. It is a more specialized tool for a more demanding data center environment.
Supercapacitors can replace conventional UPS batteries when the primary requirement is high-power, short-duration ride-through, rapid cycling, grid support, and fast response to AI load changes. They cannot replace the long-duration energy storage or generation required for extended outages.
The strongest design is technology-neutral and requirements-driven. Use supercapacitors where their power density and cycle life create measurable value. Retain batteries or generators where energy duration matters. Then connect both layers through monitoring, controls, preventive maintenance, and professional lifecycle support.
That is the foundation of Real-Time Solutions for modern infrastructure: power protection designed around the workload, the facility, and the uptime objective.
Visit Ace Real Time Solutions to request a power audit, download a technical specification sheet, or discuss a customized UPS and energy-storage design. Use a Strong Red (#b3151a) call to action against a Very Dark Blue (#072a3e) infrastructure strategy, and plan power protection before your next AI deployment makes the decision for you.
Frequently Asked Questions
What is a graphene supercapacitor UPS?
A graphene supercapacitor UPS is an uninterruptible power system that uses graphene-enhanced supercapacitor storage instead of, or alongside, conventional lead-acid or lithium-ion batteries. It is optimized for rapid discharge, rapid recharge, high cycle life, and short-duration power protection.
How does GrapheneUPS protect AI data centers?
GrapheneUPS uses continuous double-conversion AC-DC-AC power processing to isolate IT loads from voltage dips, short interruptions, frequency changes, and grid-restoration transients. Its published features also include voltage ride-through, grid support, peak shaving, and scalable storage for backup periods ranging from seconds to minutes.
Can supercapacitors replace batteries for hours of data center backup?
Generally, no. Supercapacitors are well suited to short-duration, high-power ride-through, but their lower energy density makes batteries, generators, or other long-duration systems more appropriate for outages lasting tens of minutes or hours. In many AI data centers, the best solution is a hybrid architecture using supercapacitors for fast response and batteries or generators for extended autonomy.
