Beyond the Battery: Why a Maintenance Bypass Is Your Business’s Unsung Hero
The modern electrical grid is under more pressure than ever before. Between the rapid expansion of AI-driven data centers pushing rack densities to 30kW and beyond, and an aging utility infrastructure struggling to keep pace, the margin for error has vanished. For facility managers and CTOs, the conversation has shifted from "How do we stay online?" to "How do we stay online while we fix the things that keep us online?" In this high-stakes environment, power protection isn't just about having a battery backup; it’s about the holistic resilience of the entire electrical chain.
At Ace Real Time Solutions, we see it daily: companies invest heavily in top-tier Uninterruptible Power Supplies (UPS) from brands like APC by Schneider Electric or Vertiv, yet they overlook the single point of failure that occurs during routine maintenance. If you have to shut down your entire server room just to swap out a set of aging batteries or replace a cooling fan in your UPS, your "redundancy" is merely an illusion. Real-Time Solutions require a bridge between the utility and the load that never breaks, and that bridge is the maintenance bypass.
Why Now: The Fragility of the Status Quo
Why are we talking about maintenance bypass switches (MBS) right now? Because the status quo of "scheduled downtime" is failing. In an era of edge computing and globalized 24/7 service level agreements (SLAs), there is no such thing as a "convenient" time to go dark. When you rely solely on the internal static bypass of a UPS, you are tethered to the health of that specific unit. If the UPS experiences a catastrophic internal failure or requires a full logic board replacement, the internal bypass may be rendered useless. This creates a bottleneck in your redundancy strategy.
Furthermore, the rise of high-density computing has changed the thermal management equation. Modern UPS systems work harder and run hotter than their predecessors. This increased thermal load accelerates the degradation of capacitors and batteries. If your facility is operating at a Tier III or Tier IV standard, you shouldn't be forced to compromise your uptime just because a consumable component reached its end-of-life. Without an external maintenance bypass, you face the "Latency of Maintenance", the hours or days of planning and risk-assessment required just to perform a simple hardware swap. An MBS removes this friction, allowing for seamless isolation of the UPS without the load ever sensing a flicker.
The Technical Reality: Internal vs. External Bypass
To understand why the maintenance bypass is the unsung hero, we have to look at the technical specs. Most enterprise-grade UPS units, whether it’s a CyberPower high-density double-conversion system or a Vertiv Liebert series, include an internal static bypass. This is a high-speed solid-state switch that moves the load to utility power if the inverter fails. It’s great for emergencies, but it’s not designed for service.

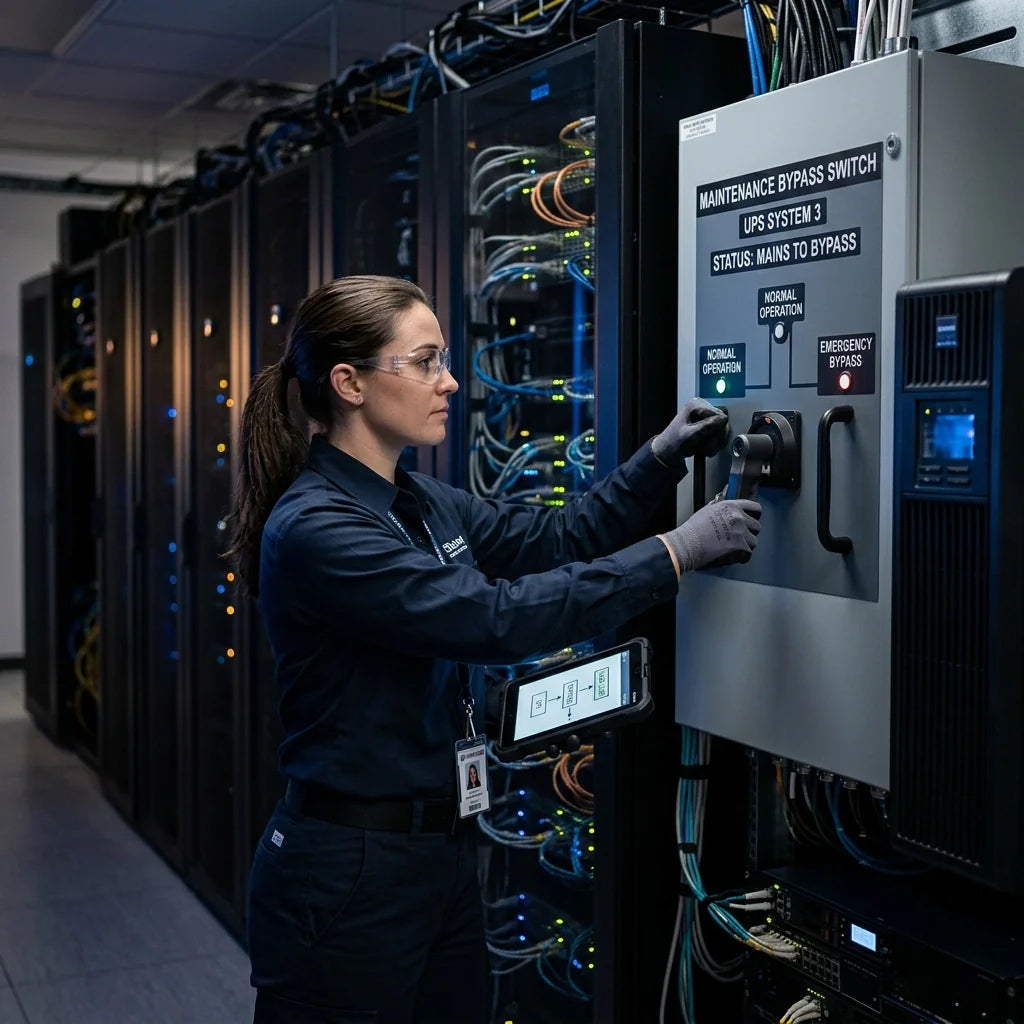

An external maintenance bypass is a physical switchgear assembly, often mounted to the wall or integrated into the IT rack. It allows you to wrap the electricity around the UPS entirely. This is crucial for two reasons:
- Safety: It physically isolates the UPS from the power source. This allows a technician to work on the internals of the machine without the risk of arc flash or electrocution from back-fed power.
- Continuous Uptime: A high-quality MBS uses a "Make-Before-Break" sequence. This means the bypass switch connects to the utility power before it disconnects from the UPS output. This ensures the critical load never sees a zero-voltage state, maintaining the 99.999% availability that modern hyperscalers demand.
When we design a power protection solution at Ace Real Time Solutions, we treat the MBS as a non-negotiable component for any system supporting mission-critical infrastructure. It’s the difference between a controlled service call and a high-stress emergency outage.
The Maintenance Bypass Roadmap
Implementing a maintenance bypass isn't just about buying a switch; it's about integrating it into your facility’s DNA. If you’re a facility manager looking to bolster your resilience, follow this roadmap to ensure your "unsung hero" is ready when you need it.
1. Audit Your Current UPS Topologies
Start by identifying which of your critical loads are currently "trapped" behind a UPS without an external bypass. Review your UPS efficiency ratings and current load percentages. If you are running legacy gear from Minuteman Technologies or older APC units, check if they support external wrap-around bypass modules.
2. Choose Between Rotary and Power Distribution Styles
Decide whether you need a wall-mounted rotary switch or a rack-integrated Power Distribution Unit (PDU) with a built-in bypass. For data centers with limited floor space, rack-mounted solutions are often preferred. For larger facilities managing MW-scale power, a wall-mounted cabinet with clear "Line of Sight" switching is the industry standard for safety.
3. Implement Strict Switching Protocols
The biggest risk with a maintenance bypass is human error, accidentally "breaking" the circuit before "making" the new one. Ensure your MBS has mechanical or electrical interlocking. This prevents the switch from being turned to the "Bypass" position unless the UPS is already in the correct state to allow it.
4. Schedule "Live" Testing (With Caution)
A bypass is only useful if it works. During your next scheduled maintenance window, practice the transition to bypass under a controlled environment. This builds confidence in your facility team and ensures that the "Real-Time" transition is as seamless as the spec sheet claims.
5. Standardize on Reliable Partners
Don't mix and match bargain-bin switches with high-end power protection hardware. Standardize your bypass gear with the same level of quality as your UPS. Whether you are using APC, Vertiv, or CyberPower, ensure the bypass module is rated for the specific amperage and voltage (e.g., 208V/30A or 480V/100A+) of your infrastructure.
Scaling for the Future: AI and the 100kW Rack
As we look toward the future of the power industry, the importance of the maintenance bypass only grows. We are moving into an era where rack densities are skyrocketing. In these environments, the UPS is no longer just a "backup"; it is a power conditioner that is constantly cleaning the "dirty" power coming off a strained grid.
In these high-density setups, the UPS becomes a high-wear item. You will need to service it. If you are managing a cluster of H100 GPUs for an AI training model, a single hour of downtime can represent hundreds of thousands of dollars in lost compute time. By installing a robust maintenance bypass, you decouple the lifespan of your UPS from the uptime of your servers. You can swap, upgrade, or repair your power protection hardware as easily as you’d swap a hard drive in a SAN.
This is the level of reliability we strive for at Ace Real Time Solutions. We don't just sell boxes; we design ecosystems that survive the realities of the modern world. From the IT racks and cooling systems to the cable management and remote monitoring that ties it all together, every piece must serve the goal of zero-downtime.
High-Authority Power Protection FAQ
What is the difference between a Static Bypass and a Maintenance Bypass? A static bypass is an internal, automatic electronic switch within a UPS that engages if the inverter fails. A maintenance bypass is an external, manual switch that allows the entire UPS to be powered down and physically removed or serviced while the load remains powered by utility electricity.
How does a Maintenance Bypass prevent downtime during battery swaps? While some small UPS units allow "hot-swapping" of batteries, larger systems or those requiring internal DC bus maintenance often require the system to be powered down. The maintenance bypass reroutes power around the UPS, allowing the technician to safely disconnect the batteries without shutting down the connected servers or medical equipment.
Is an external Maintenance Bypass required for Tier III data center certification? Yes, Tier III and Tier IV standards require "concurrently maintainable" infrastructure. This means every component in the power path: including the UPS: must be able to be removed from service for maintenance or replacement without impacting the "critical environment" or the load. An external maintenance bypass is the primary tool used to achieve this standard.
Take Control of Your Infrastructure
Don't let your UPS become the single point of failure that brings your business to a screeching halt. A maintenance bypass is a small investment that pays massive dividends in peace of mind and operational continuity. It is the definition of a "Real-Time Solution": keeping the lights on when the hardware fails.
