10 Reasons Your UPS Runtime Isn't Working (And Why a "Full Battery" Reading is Lying)

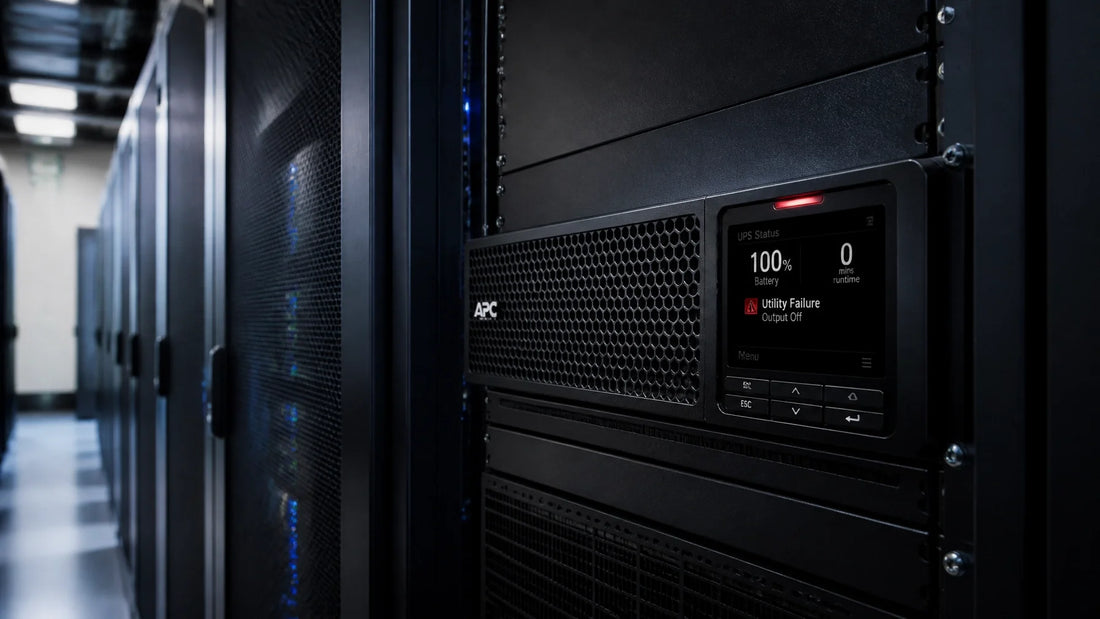

For CTOs and Facility Managers, few things are as unnerving as the "Runtime Mirage." You walk through your data center, see the glowing green "100% Battery" status on your APC or Vertiv units, and assume your 15-minute bridge to the generator is secure. But when the utility power dips, that 100% reading collapses to zero in seconds. The servers go dark, the cooling fans stop, and the "Real-Time Solutions" you relied on suddenly feel like a liability.
The industry is currently facing a "Critical Power Paradox." As AI-driven power densities climb toward 50kW and 100kW per rack, the margin for error in backup power has vanished. Grid instability is increasing due to aging infrastructure and the intermittent nature of renewables, making your UPS the last line of defense. Yet, many organizations are still relying on legacy maintenance protocols that trust a digital display rather than the physical chemistry of the batteries.
Why Now: The Latency of Battery Failure
The status quo of "check the dashboard and move on" is failing because modern battery degradation is often silent. In the world of high-density computing, where latency isn't just about data packets but about how quickly your power system responds to a failure, a misleading battery reading is a catastrophic risk. Traditional VRLA (Valve Regulated Lead Acid) batteries can maintain a "surface charge" that looks perfect to a voltmeter but lacks the chemical depth to sustain a load.
As data centers move toward Tier III and Tier IV standards, the expectation is 99.982% to 99.995% uptime. You cannot reach these benchmarks if your UPS runtime is an unknown variable. The transition to AI-centric hardware means higher inrush currents and more aggressive discharge profiles, making the "lying" 100% reading more common than ever.
The 10 Reasons Your UPS Runtime Isn't Working
1. The "Surface Charge" Illusion
A battery can show 100% charge because its terminal voltage is high, but this is often just a "surface charge." Think of it like a thin layer of water on a frozen lake; it looks deep, but there is no volume beneath it. When the UPS switches to battery, this superficial voltage vanishes instantly under the pressure of a real IT load.
2. Excessive Internal Resistance (The "Clogged Pipe")
As batteries age, chemical reactions inside the cells create lead sulfate crystals (sulfation). This increases the internal resistance. Even if the battery is fully charged, the energy cannot flow out fast enough. Under load, high resistance causes an immediate voltage drop, triggering the UPS low-voltage cutoff. This is why a battery that measures 13.2V at rest might drop to 10.5V the second a server pulls current.
3. Thermal Degradation and "Dry-out"
Data centers are often kept cool for the servers, but the inside of a UPS cabinet can be a different story. If your cooling and air flow devices aren't optimized, the heat accelerates the evaporation of the electrolyte in VRLA batteries. For every 15°F (8°C) increase in temperature above 77°F (25°C), the life of a lead-acid battery is cut in half. A "dry" battery may still show 100% voltage but has zero capacity to hold a charge.
4. The Weakest Link: Single Cell Failure
Most UPS systems use strings of batteries in series. If you have a 480V DC bus made of 40 individual 12V blocks, one bad cell in one block can kill the entire string. When the UPS draws power, that one weak cell's voltage collapses, creating an open circuit or a massive voltage dip that forces the UPS to shut down to protect its internal DC-to-AC inverter.
5. Lack of Calibration (The "Battery Constant")
Smart UPS systems from brands like APC use internal algorithms to estimate runtime. After you replace a battery, if you don't perform a "runtime calibration" or reset the "battery constant" in the firmware, the UPS may still be using the degradation data from the old, failed battery. It sees a full charge but "thinks" it only has 2 minutes of runtime, causing it to send a shutdown signal to your servers prematurely.
6. "Ghost" Load Reporting
Sometimes the problem isn't the battery, but the UPS's perception of the load. If your power factor is poor or if you have high-harmonic equipment, the UPS may under-report the actual VA (Volt-Amps) being drawn. When the power fails, the actual stress on the batteries is 20% higher than expected, leading to a much shorter runtime than the display predicted.
7. Over-cycling from "Micro-outages"
Frequent, short-duration power sags (brownouts) cause the UPS to cycle the batteries for just a few seconds. While this protects your equipment, it can prevent the batteries from ever reaching a "float" state where they can chemically stabilize. This constant agitation wears down the plates and leads to premature failure that standard monitoring might miss.
8. End-of-Life (EOL) Chemical Math
Lead-acid batteries are typically rated for a 3–5 year or 10-year life. However, "usable capacity" begins to drop almost immediately. By the time a battery reaches its 4th year, its actual amp-hour capacity might be 70% of its original rating. The UPS still charges it to its maximum available capacity and calls that "100%," but 100% of a degraded battery is still not enough to meet your original spec.
9. Poor Terminal Connections
Resistance doesn't just happen inside the battery; it happens at the terminals. Loose bolts, slight corrosion, or poor crimping on the battery busbars create "contact resistance." Under the high-current draw of a 100kW rack, these connections heat up and cause a voltage drop that mimics a dead battery, forcing an early shutdown.
10. The Absence of Load Bank Testing
The only way to truly know your runtime is to test it. Many facilities rely on the UPS "self-test," which only lasts for 10 seconds. This is not long enough to overcome a surface charge. Without a full discharge test (load bank test) that takes the battery down to at least 20% of its capacity, you are flying blind.
The Runtime Reliability Roadmap
If you want to move beyond "guessing" your uptime, your facility management team needs to implement these 5 steps immediately:
- Mandate Monthly Internal Resistance (IR) Scanning: Don't just check voltage. Use a handheld IR tester to track the ohmic value of every block. A 20% increase in resistance over the baseline is an immediate red flag for replacement.
- Perform Annual Load Bank Testing: Hire a professional to bring in a portable load bank. Discharge the batteries to 50% capacity at your actual operating load. This is the only way to "prime" the chemistry and verify the real-world runtime.
- Upgrade to Remote Monitoring and Control: Modern solutions from Ace Real Time Solutions allow for real-time monitoring of individual battery strings. We can see a cell failing weeks before your UPS dashboard does.
- Audit Your Thermal Management: Ensure that battery cabinets are not placed in "hot aisles." If your UPS room is consistently above 80°F, you need to rethink your air flow or move to Lithium-Ion batteries, which have a much higher thermal tolerance.
- Standardize Your Replacement Cycle: Don't wait for failure. For critical IT infrastructure, a 3-year replacement cycle for 5-year batteries is the standard for high-availability environments.
Technical Depth: By the Numbers
In a modern AI data center, power protection must be sized for high-density environments.
- Density: We are seeing an increase from 10kW per rack to over 50kW per rack. This requires UPS systems with high efficiency ratings (96% or better in double-conversion mode).
- Standards: To meet Tier III requirements, you need N+1 redundancy in your UPS and battery strings. If one string fails its discharge test, the remaining strings must be able to support the full load.
- MW Scale: At the megawatt level, the transition from VRLA to Lithium-Ion (LiFePO4) is becoming the norm due to the 10-year lifespan and reduced footprint, which saves valuable floor space for more server racks.
Ready to Stop the Guesswork?
Don't wait for a blackout to find out your 100% battery was a lie. At Ace Real Time Solutions, we specialize in the design, installation, and maintenance of high-performance power protection. Whether you need an on-site power audit, a new string of replacement batteries, or a custom-designed UPS solution from APC or Vertiv, our team is here to ensure your uptime is a reality, not a mirage.
Contact our team today or request a technical spec sheet at acerts.com.
Power Protection FAQ
What is the difference between a UPS self-test and a load bank test? A UPS self-test is a brief (usually 10-second) check that confirms the battery is connected and has a basic charge. A load bank test is a comprehensive discharge of the battery under a controlled, sustained load to verify actual amp-hour capacity and runtime.
How does internal resistance affect my UPS performance? Internal resistance is essentially a "bottleneck" inside the battery. As it increases, it prevents the flow of current. When your UPS needs to draw high power during an outage, high internal resistance causes the battery's voltage to drop rapidly, which often leads to an immediate system shutdown even if the battery is fully charged.
What is the "Battery Constant" in an APC UPS? The battery constant is a hexadecimal value stored in the UPS firmware that tells the unit the age and condition of the battery. If you replace the batteries without updating this value or performing a runtime calibration, the UPS will continue to report inaccurate runtime based on the performance of the old, degraded batteries.
